T71 4K 4 Inch CCTV Tester With Multimeter,4K IP Camera Tester, Support AHD/TVI/CVI/CVBS ,12V/1A Power Output,TDR RJ45 Cable Test

Colorful Electronics

Origin: China

Sample order : Support

Sensor Size:4.0-inch all-viewing angle screen,16.7M color

ONVIF: highly compatible

Camera Support :Analog , HD-TVI, AHD, HD-CVI, IPC

POE Power output: 12V1A

Multi-function:PTZ control, RS 485 test, Audio test,100M Ethernet link test,Supports H.264, H.265 and 4K cameras,TDR test

Linux operating system

[email protected]

T71 4K 4 Inch CCTV Tester With Multimeter,4K IP Camera Tester, Support AHD/TVI/CVI/CVBS ,12V/1A Power Output,TDR RJ45 Cable Test

Product Description:

T70 Support IPC(H.264/ H.265/ 4K) Camera +12V/1A power output +TDR RJ45 Cable Test + 12V/1A power output+ 100M network port

T71 Support IPC(H.264/ H.265/ 4K) Camera+AHD+TVI+CVI+CVBS +12V/1A power output +TDR RJ45 Cable Test + 12V/1A power output+ 100M network port

Brief Product Introduction:

This device is designed for video surveillance installation and maintenance. It can be applied to analog SD video, analog HD video, HD IP CCTV systems, RS485 PTZ control testing, IP camera testing, Ethernet testing, TDR cable testing(optional), video screen shots, video recording, playback, and other functions, and combined with analog camera testing. This device is powerful, easy to carry, very suitable for video security engineering installation and the maintenance of front-end camera equipment. It greatly improves engineering and installation efficiency, reducing the cost of maintenance.

General description:

1.Support Analog, IPC(H.264/ H.265/ 4K) Camera for DT-T70, H.264 Camera for DT-T60

2. Step by step IPC test, quickly locate failure

3. ONVIF highly compatible

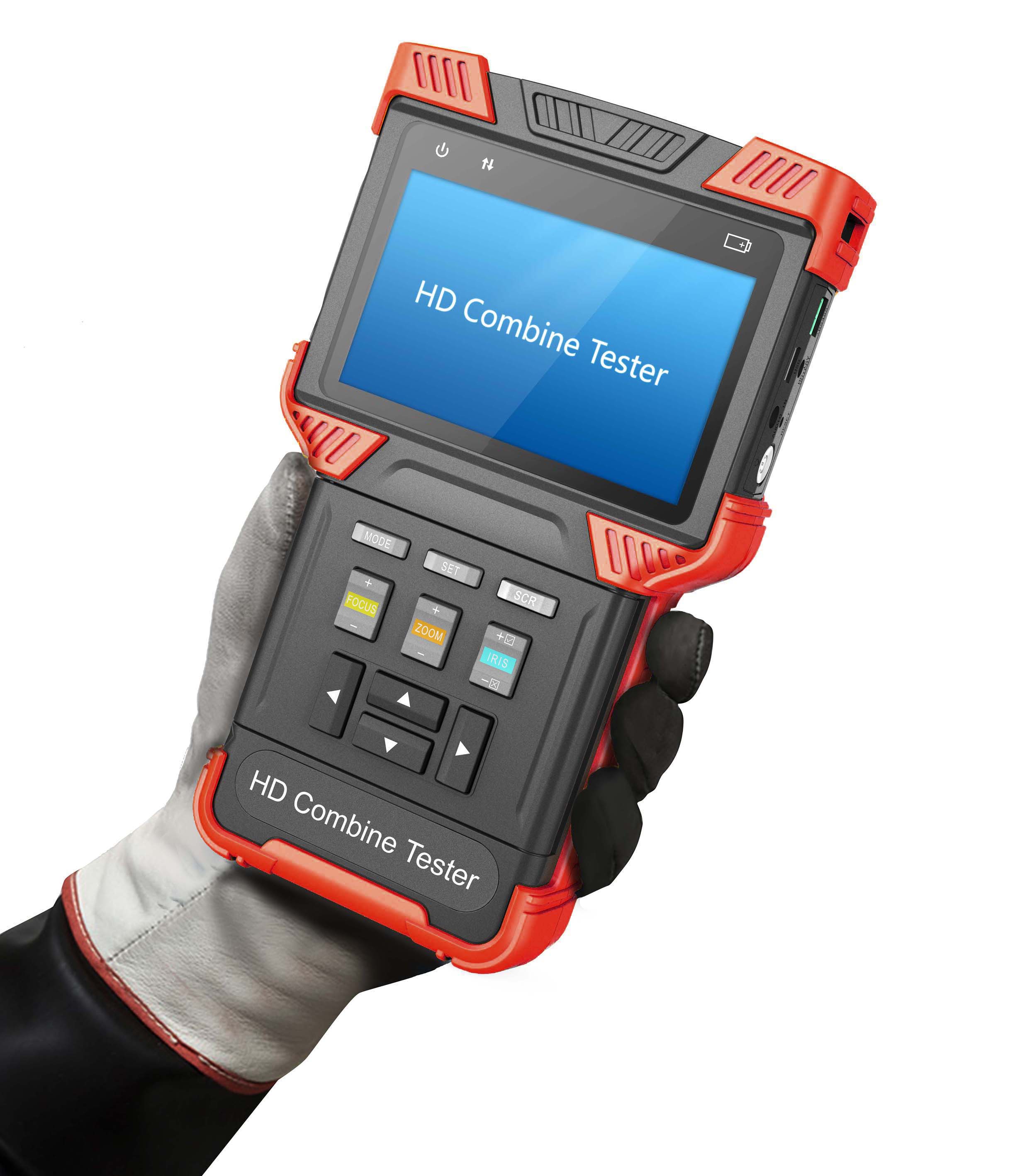

4. Ergonomic design, operate with single hand.

5. Real time operation prompt

6.12V/1A power output

7. Dual 100M network port,capable of detecting packet lost, monitoring network flow

8.TDR RJ45 Cable Test (optional)

9.4.0 inch all viewing angle display,800X480 resolution, 16.7M color

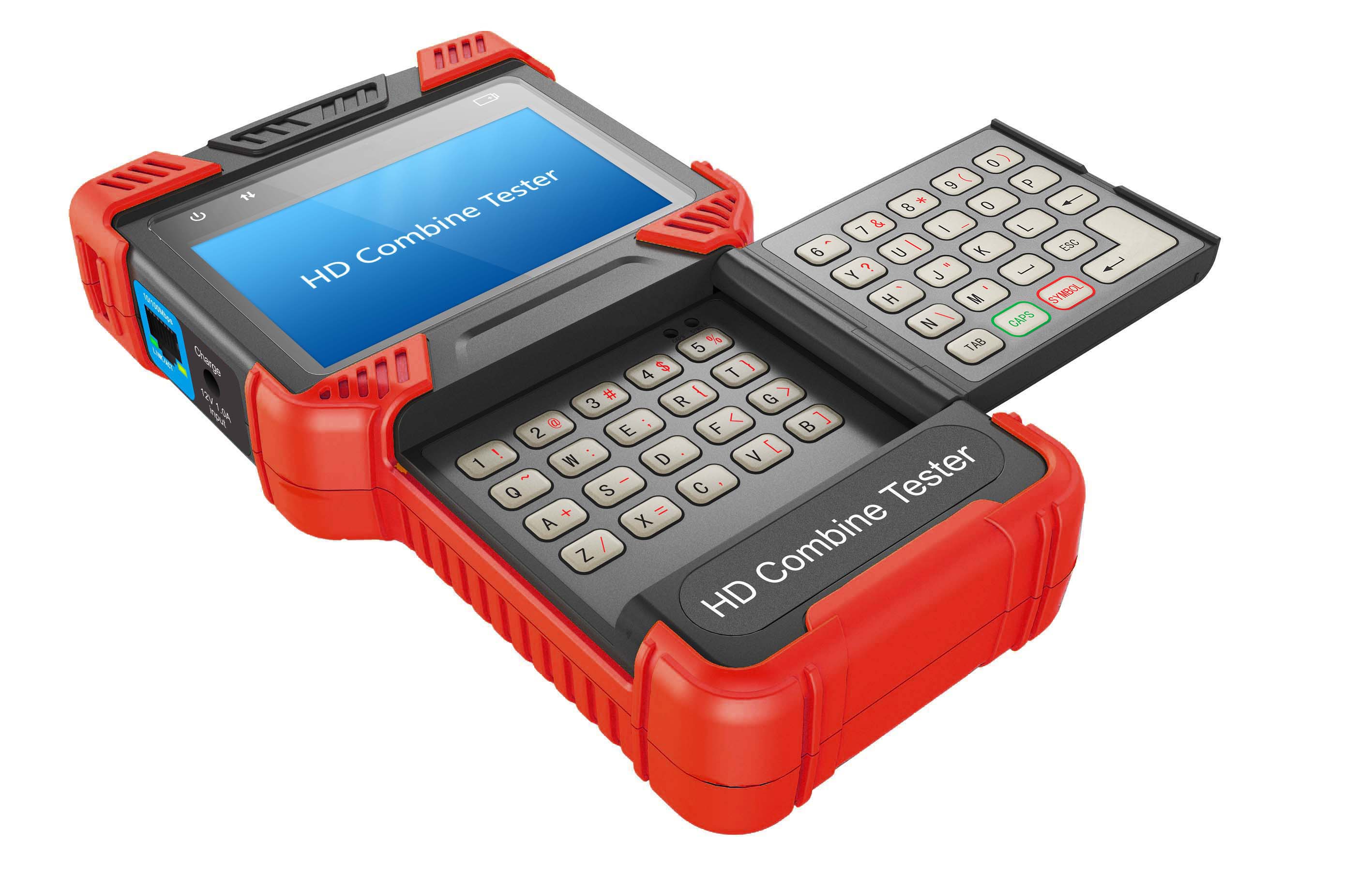

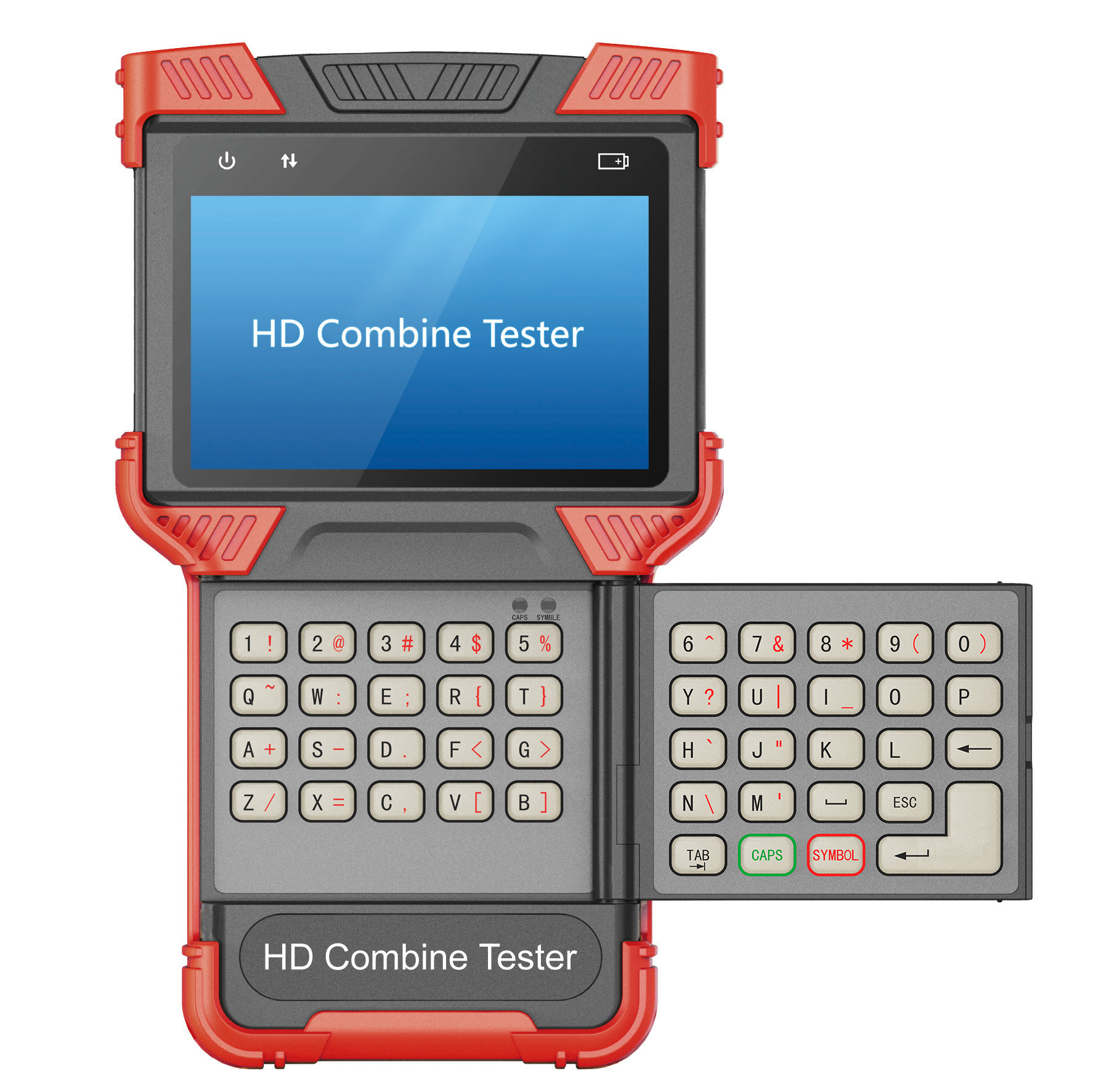

10. Swing keyboard input, QWERTY.

11.Changeable Li-polymer battery, battery working time 5 hours

12. With rubber protection layer

13. Dual LED torch

14. Software upgrade online

Features:

1.4.0 inch all viewing angel screen, DC12V/1A Output

2.Support H.264& H.265& 4K Camera or H.264 Camera;

3.ONVIF test (IPC Test): IP Configuration, Modify IP Address, IP Password Notebook, LAN DHCP client; LAN static IP.

4.Ethernet test:100M Ethernet link test; Packet loss test; Ethernet loop detection; etc.

5.HD IP & Analog Camera Testing: PTZ control, Viewing camera video, configure camera parameters. Video snapshot, video recording and Playback.

6.Signal generator

7.S485 Data monitor; Playback.

8.Network tools: Ping IP/ Set IP, Sniff, List subnet,

9.System Setting: Setting the automatic shutdown time, Setting the screen language System upgrade , USB storage

10.Linux operated system: More stable operation.

11.TDR Function: Cable length Testing; 0~200m net cable detection, resolution 0.1m. Cable Quality Test: connection state and attenuation for the connected RJ45 cable(optional)

Specification:

model	DT-T71
interface

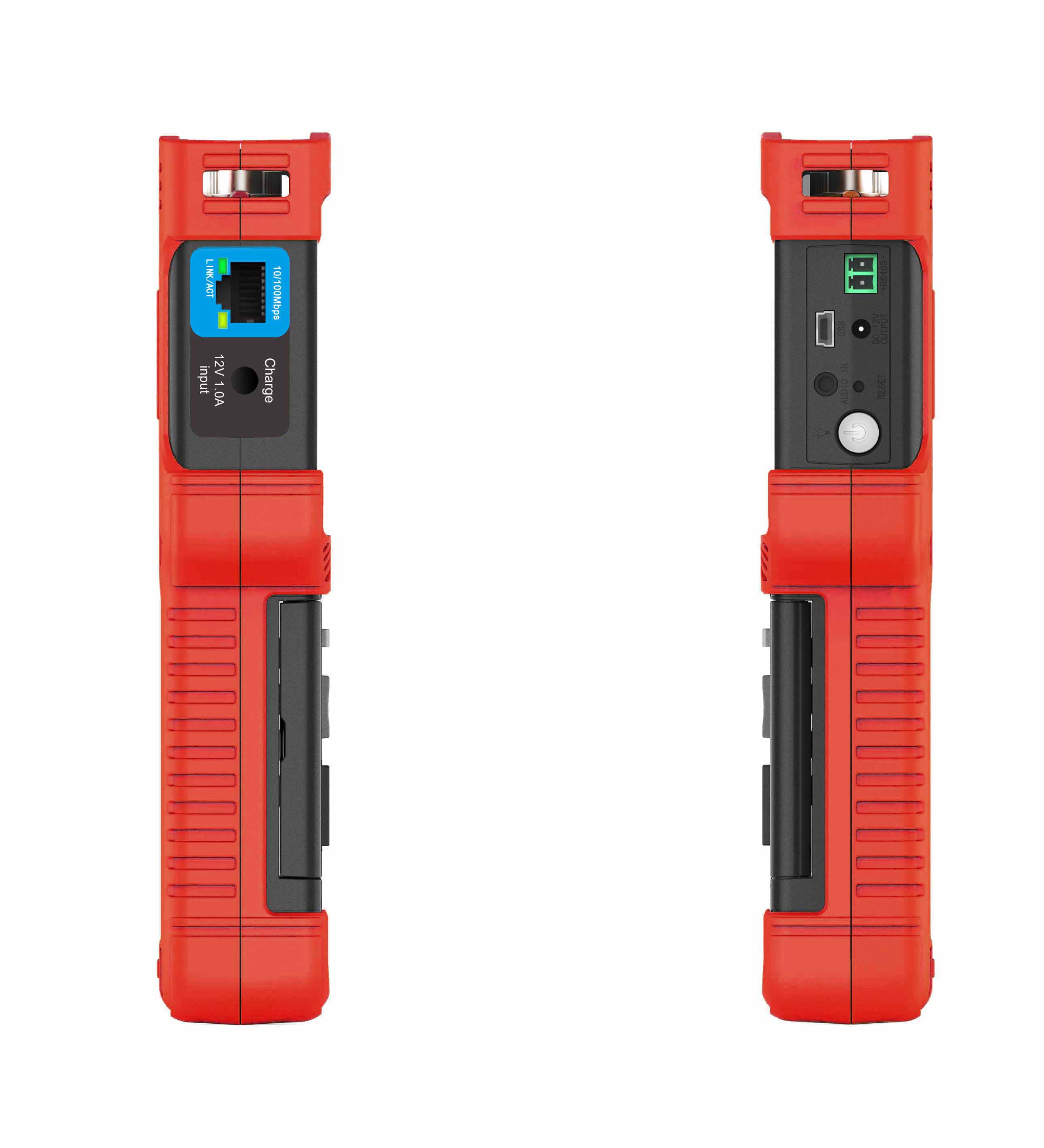

Network interface	Dual 10/100M RJ45，support switch mode
Function interface	Dual BNC connector（Video input/output），RS485comm，audio input，USB, reset button
IPC test
protocol	ONVIF , RTSP, RTP
Ethernet test	10/100M Ethermet Link test；link speed test；DHCP client and server Ethernet loop detect；Ethernet flow monitor；Link quality indicator；
IP Configuration	Static IP/ DHCP client/ DHCP server
IPC Setting	Manual IP/ DHCP client/ DHCP Server/Multiple DHCP detect/auto DHCP status switching
IPC Test	Discover, inter-subnet discover,camera list, camera snapshot for fast camera indication, real time video, camera network setting, PTZ test, audio test, full screen display of video, digital zoom of video( 8step), save snapshot, record video(original stream), UDP/TCP switching, packet lost indicator, camera profile setting.
IPC Image Test	H.265/ H.264 Encode, Support 4K@30FPS
Physical Port	Dual-port RJ 45 Ethernet 100M bps
POE Test
PSE Test	The tester is power output 802.3af; 15.5W Max
Hikvision/ dahua camera activate	Automatic detect.
Analog SD and HD test
HD Signal Format	NTSC/ PAL SD video Signal, HD-CVI, HD-TVI, AHD, HD video Signal Automatic adaptation
Signal level	1Vpp
Video resolution	D1, 720P, 1080P

Camera test	Real time video, PTZ control, audio test, full screen preview, digital zoom of video(8 step), save snapshot, record video(h.264), video resolution and frame rate indicator.
HD OSD	Camera setting（OSD）
12V Power Output
Power Output	12V/1A output, Interface: Circular outer diameter 4mm, inner needle 1.6mm
Audio test
Audio test	1 audio signal input
PTZ control Test
Communication protocol	Hikvision coaxial、PELCO-C coaxial、Hikvision、Pelco-D/P、Samsung、Panasonic、Lilin、Yaan...more than 30 protocols
Baud rate	150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
TDR RJ45 Cable Test
RJ45 Cable Test	0~200m RJ45 cable test，open/short/broken wire，resolution 1m
device
Display	4.0inch TFT 800RGB480(WVGA) resolution，16.7M color，back light level adjustable
Internal storage	8GB flash
LED torch	Two 35lm LED, can turn on individually when device is off.
Operation	Power button, main control keypad of 12 keys, swing QWERTY keyboard of 45 keys.
Language	Chinese,English,French,Spanish,Germany,Turkish,Russian, Czech, Hebrew, Romanian, Serbian, User optional
Keypad tone	On/Off
Software upgrade	Online upgrade
power
Power input	12V charge
battery	Dedicate li-polymer battery, user replaceable, capacity 11Wh
Power output	POE (802.3af)
	12V/1Aoutput
Battery work time	Charge 3~4 hours，working time 6 hours

other
Working temperature	-10℃~+55℃
Working humidity	30%~90%
Device Dimension	190x113x37mm
Weight	0.5kg(device with battery) / 1.6kg(gross)

Packing list:

1* CCTV Camera Tester
1* Charger
1* BNC Cable
1* RS485 Cable
1* 12V Power Output Cable
1* Audio Cable
1* Mini USB Cable
1* Lanyard

1*Tool Bag

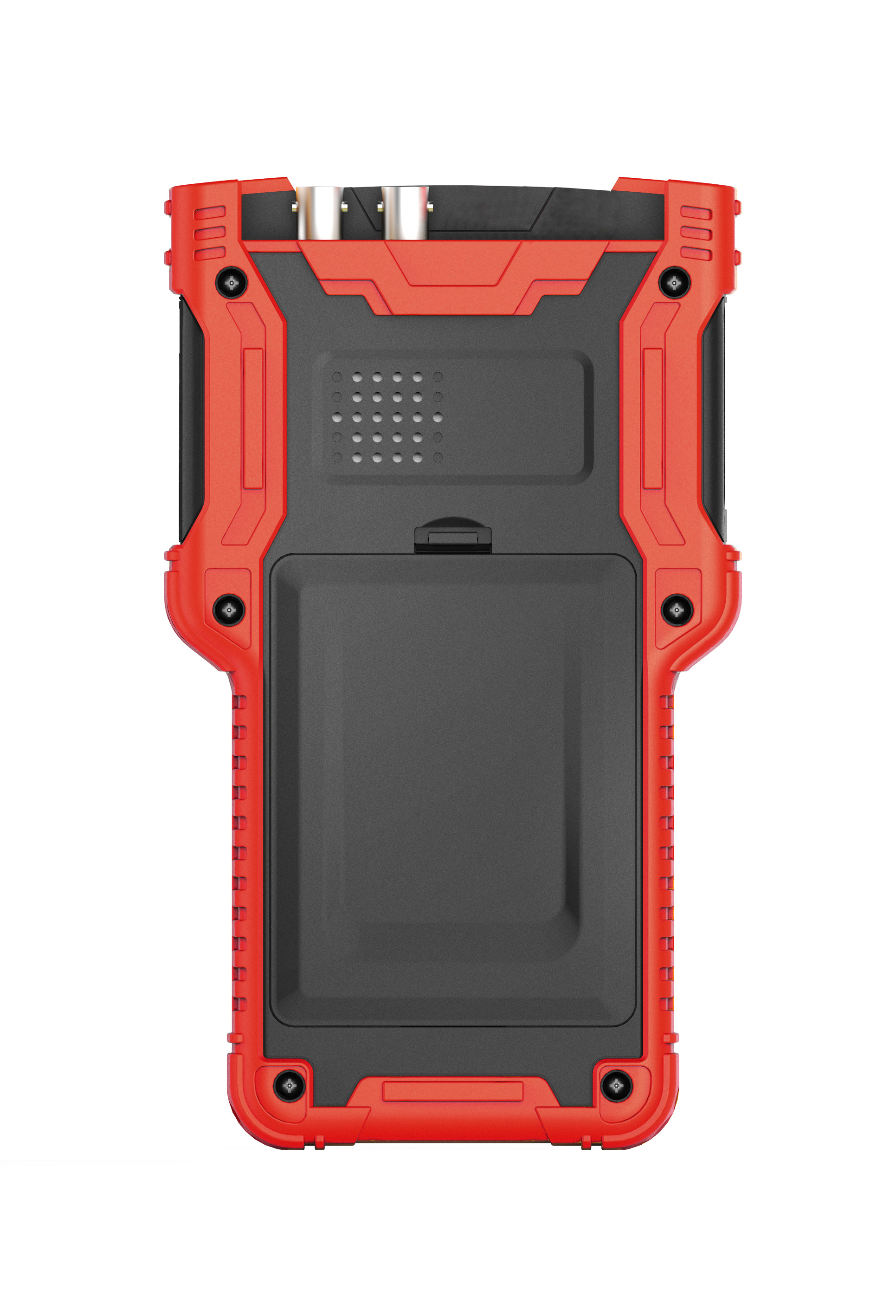

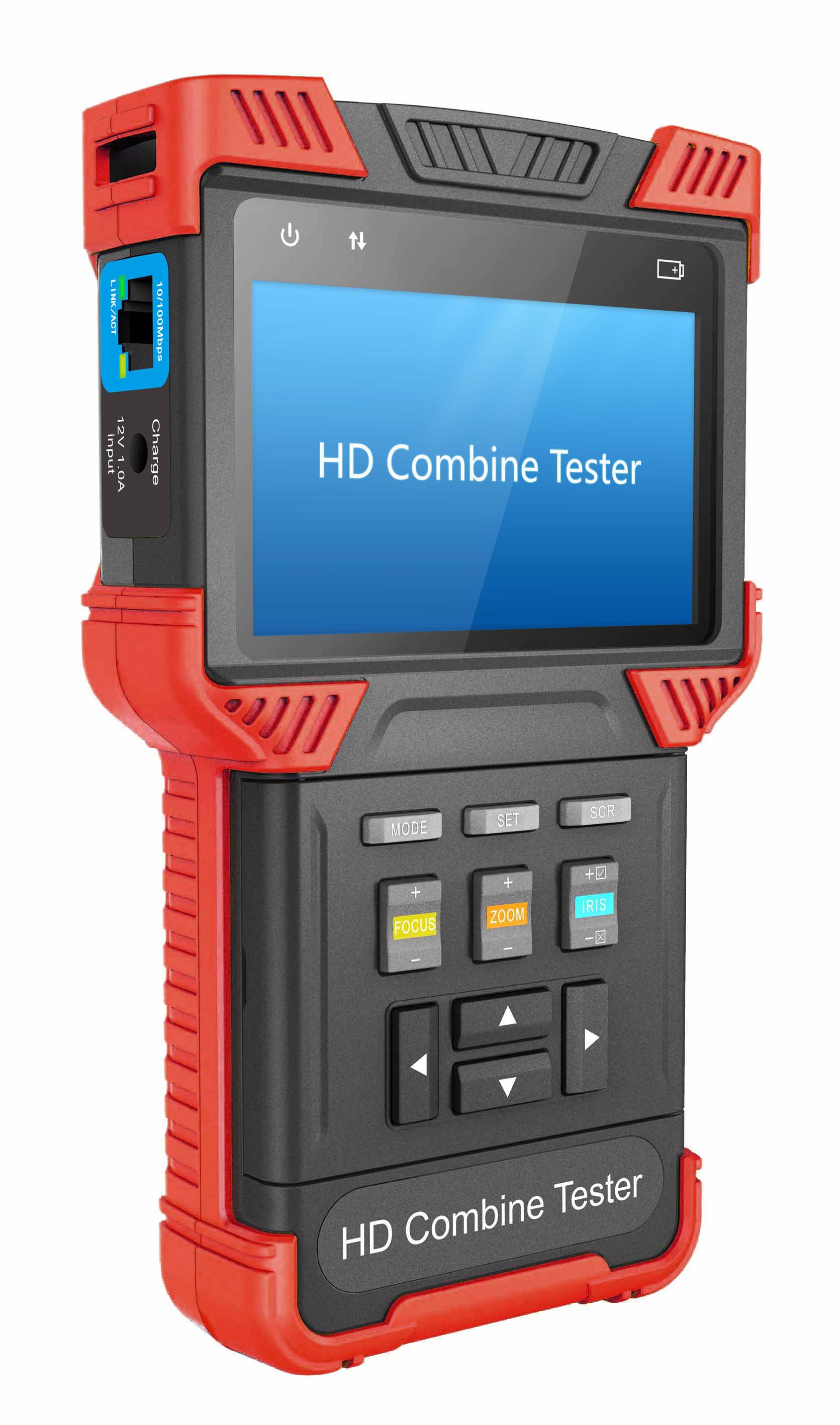

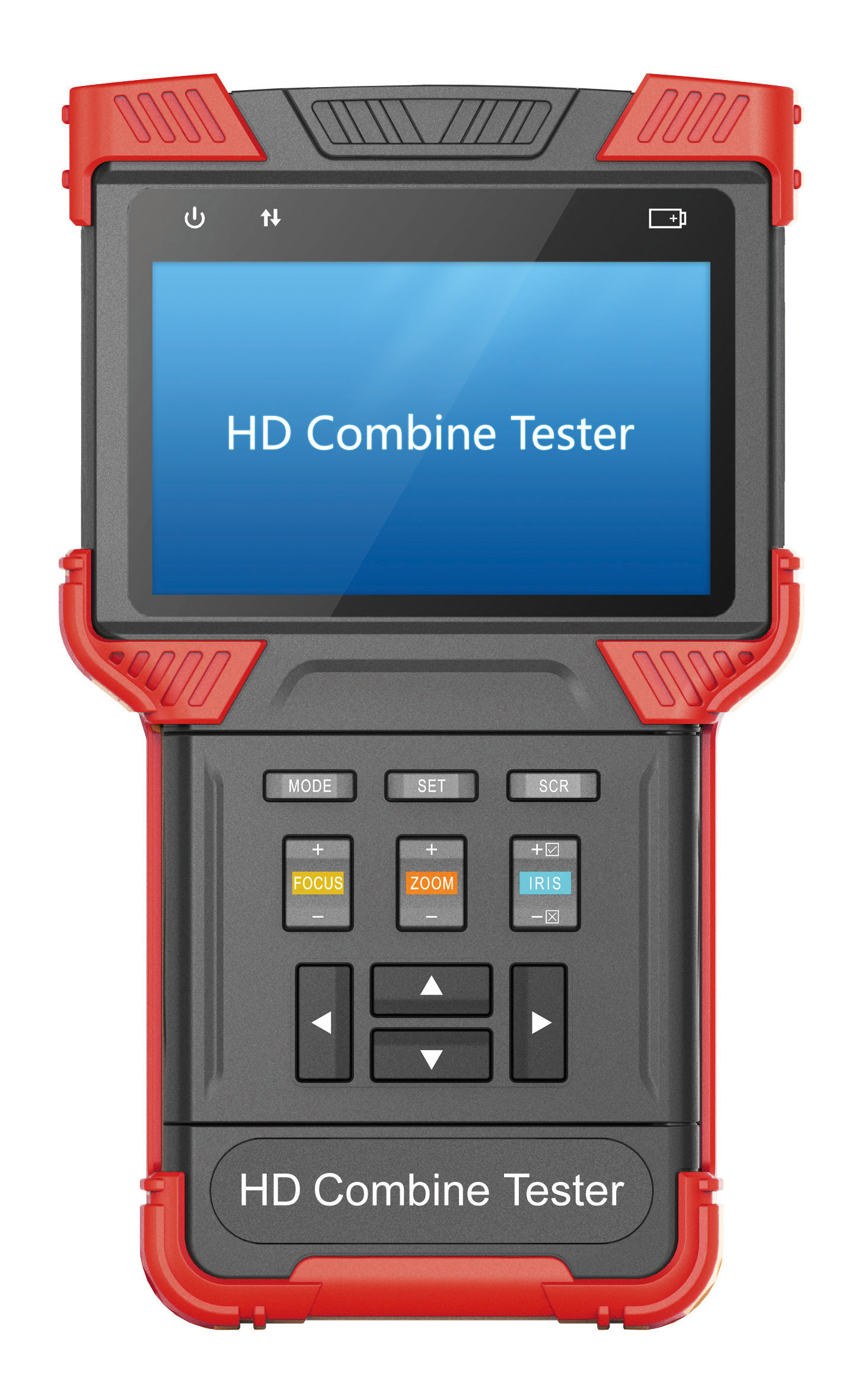

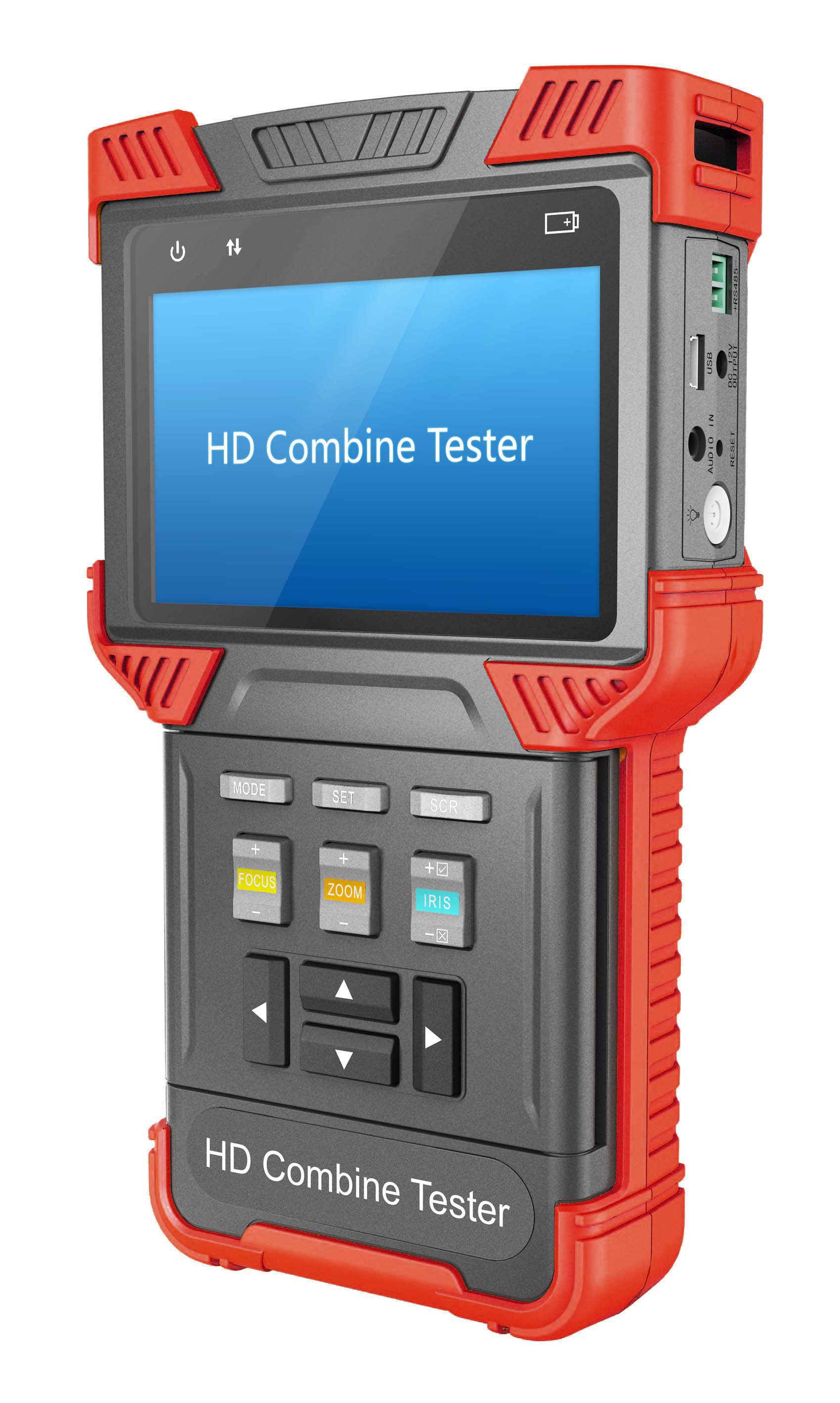

Product Pictures:
