Brand :Colorful Electronics .Origin: China
Sample order:Support
Screen :7.0” TFT 1920*RGB* resolution
Power Plug:EU, AU, US, UK Plug optional
Battery:one piece 18.5Wh lithium battery,work about 10 hours
POE power 12V/1.5A charging
IPC test: ONVIF , RTSP, RTP,IPC setting; POEtest;PSE Test
This is one powerful multi-functional HD analogue and IP network cctv tester,7.0 inch all viewing angel& touch-screen,support IP H.265 4K+CVBS+AHD 5MP +TVI 8MP +CVI 8MP Cameras testing Multimeter+Optical fiber power meter

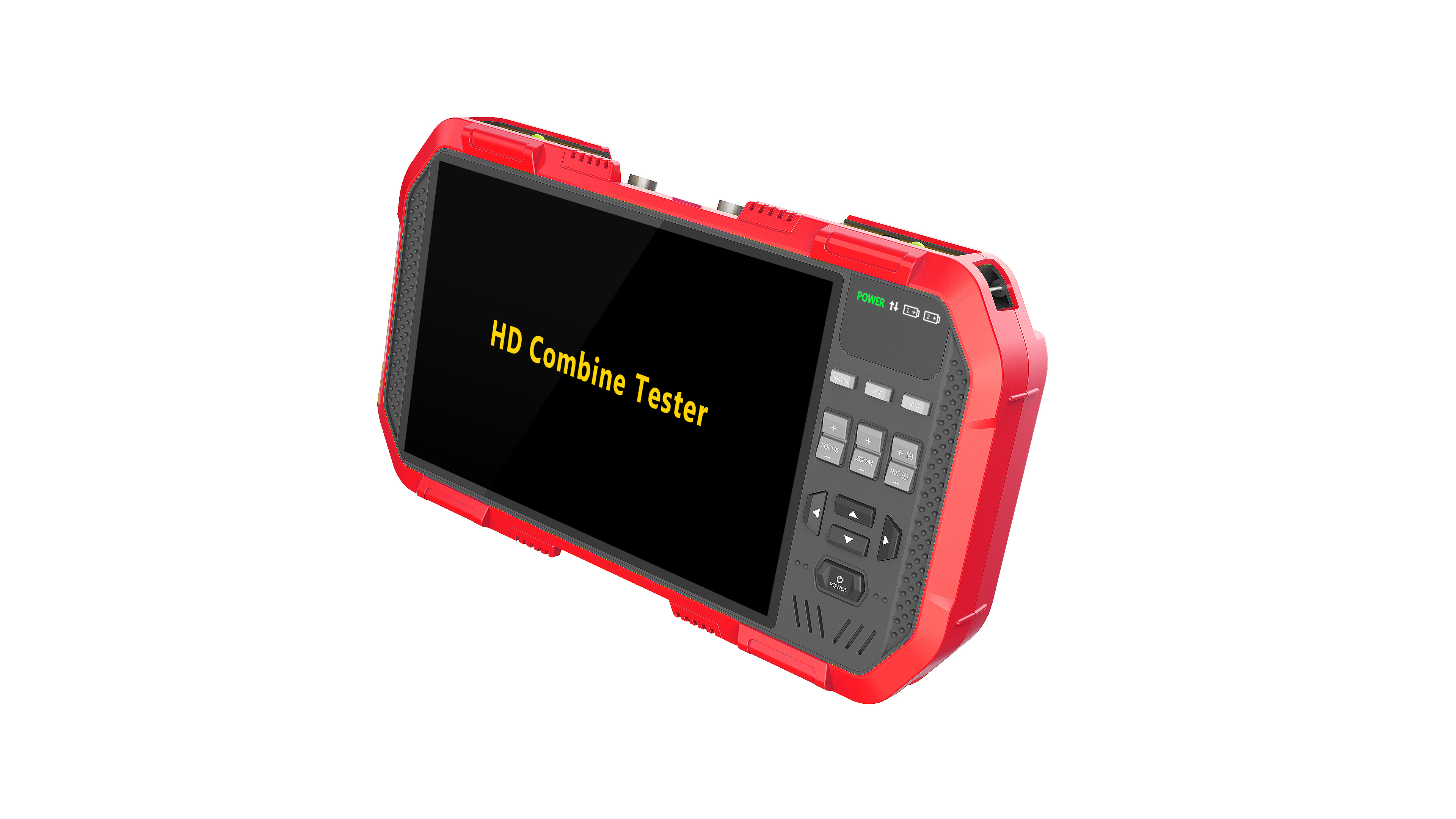

A82 8MP 7" 5 In 1 H.265 4K HD IP CCTV Tester Monitor AHD CVI TVI
Product Description:
A82:7 Inch CCTV Tester Monitor IP H.265 4K+CVBS+AHD 5MP +TVI 8MP +CVI 8MP Cameras testing
Differences
A86:7 Inch CCTV Tester Monitor IP H.265 4K+CVBS+AHD 5MP +TVI 8MP +CVI 8MP Cameras testing +Multimeter+Optical fiber power meter
Main Features:
Specifications:
|
IPC test |
|
|
IPC protocol |
ONVIF, RTSP, RTP |
|
Ethernet test |
10M/100M/1G Ethernet link detection; Ethernet loop detection; DHCP client and server; Ethernet traffic detection, data link qualitydetection. |
|
IPC test |
Discovering the device, real-time video, camera configuration, PTZ test, discovering ONVIF device cross the network segment. |
|
IPC image test |
H265/H264 decoding, support 4K@30FPS, local zoom preview (at 8 levels). |
|
Interface |
Dual-port RJ45 Ethernet 1Gbps, support serial connection; |
|
WI-FI test |
|
|
WIFI test |
Support 2.4G and 5G frequency band, WIFI connection, WIFI list, WIFI information detection, delay detection, test of packet loss rate. |
|

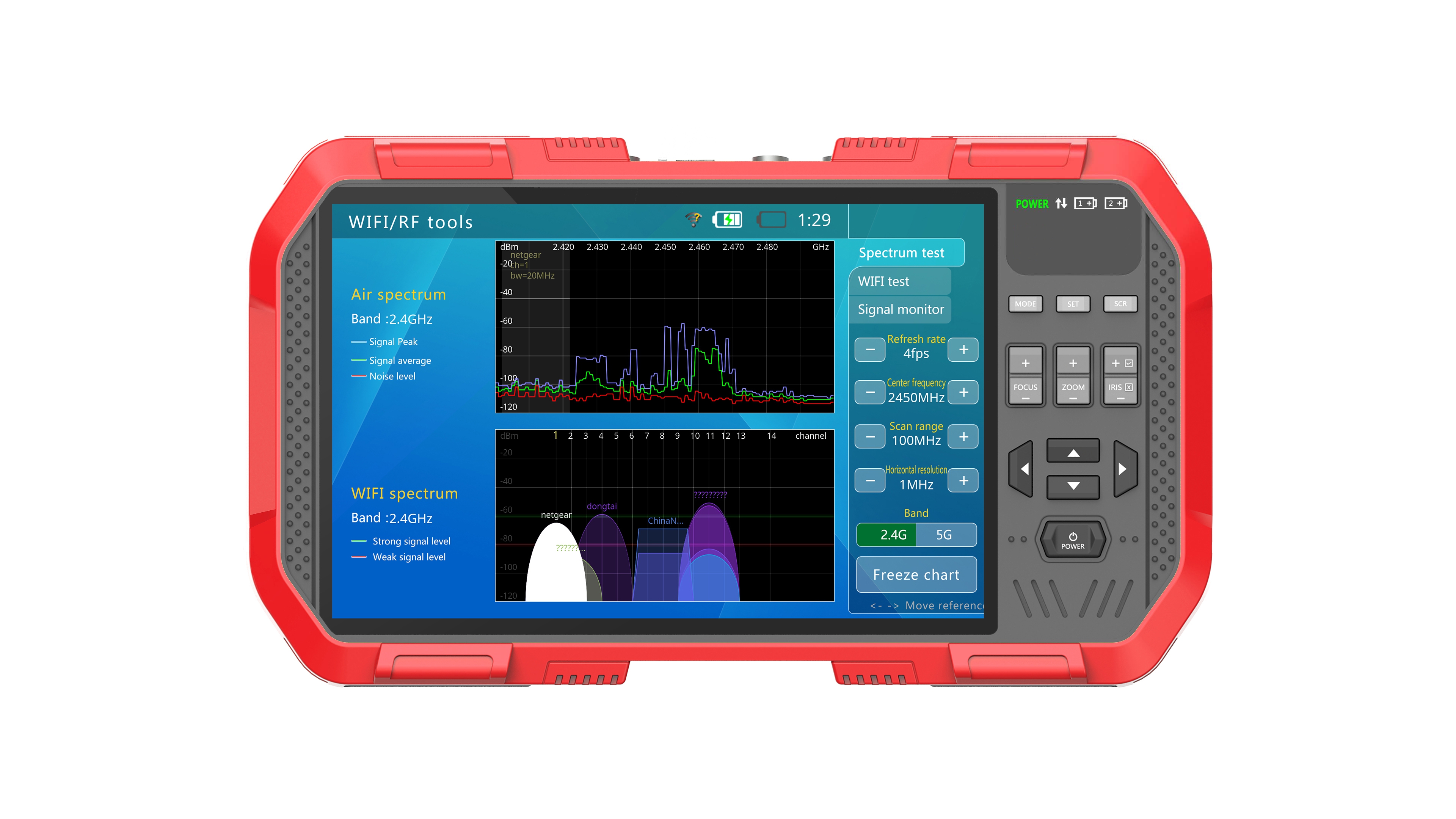

Spectrum test |
Support 2.4G and 5G frequency band, spatial frequency band signal scanning and detection, and spatial noise (interference) signal detection. |
|
Signal monitoring |
Support 2.4G and 5G frequency band quick monitoring of signal change, refresh frequency: 1-10Hz. |
|

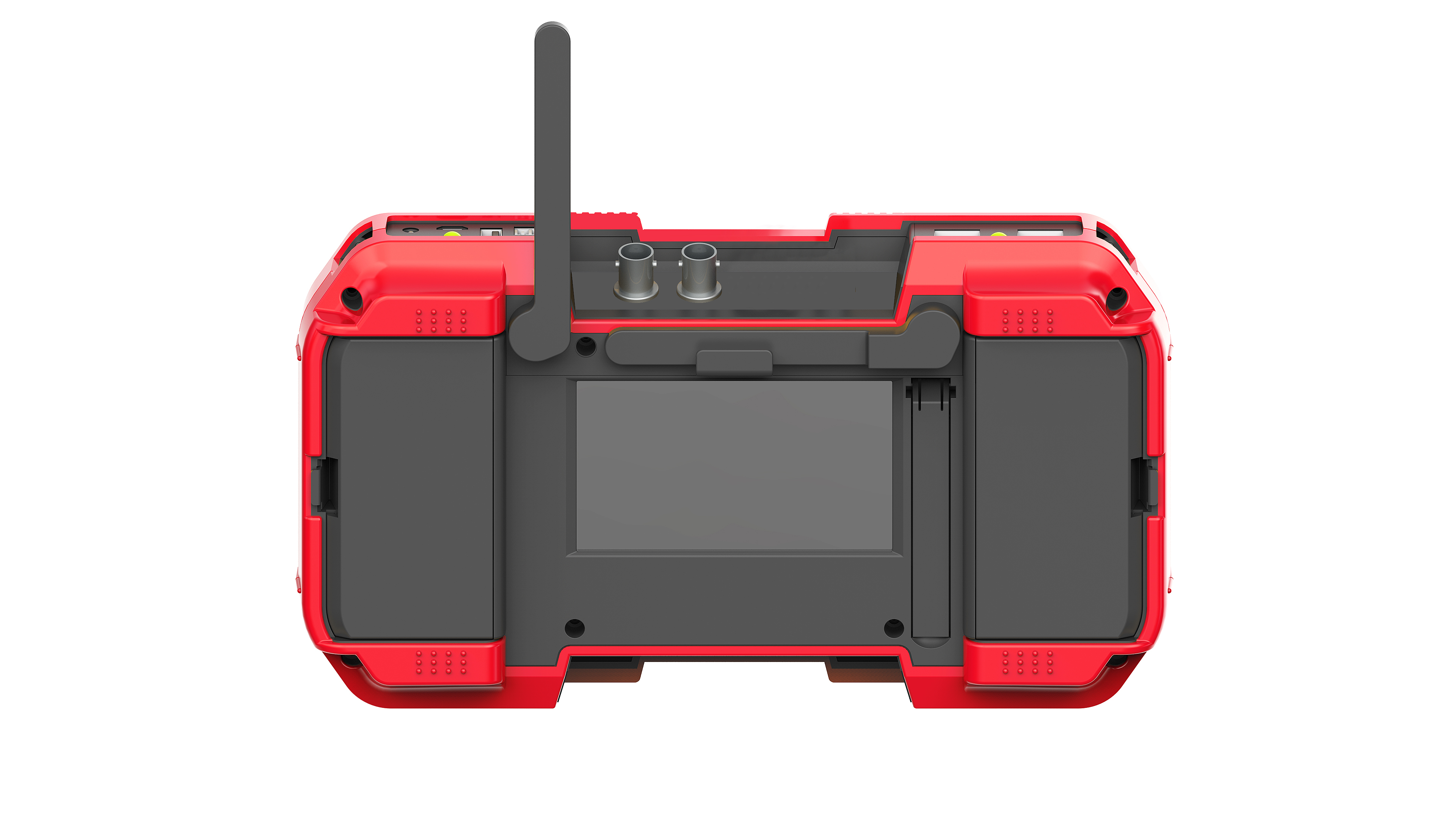

Antenna type |
External foldable dual antenna. Dual band Dipole omnidirectional antenna |
|
POE test |
|
|
PD test |
The tester receives the power. 802.3at; power supply voltage detection |
|
PSE test |
The tester supplies the power. 802.3at;25.5Wmax, PD actual power detection |
|
Analog video test |
|
|
Video format |
NTSC/PAL/HD-CVI3.0 standard /AHD3.0 standard /HD-TVI3.0 standard |
|
Video signal |
1Vpp |
|
Video input / output |
Video IN BNC input, Video OUT BNC output |
|
Video digital zoom |
Support the zoom at 8 levels |
|
Video signal generator |
Sending PAL/NTSC video test signal, sending CVI, AHD and TVI video test signal (720P/1080P). |
|
|
HDMI signal test |
||
|
HDMI Input |
Can receive 720P 25/30/50/60Fps,1080P 25/30/50/60Fps input signals for display |
|
|
HDMI Output |
Can output various formats of test images( 720P 50/60Fps,1080P 25/30/50/60Fps) |
|
|
12V power output |
||
|
Power output |
12V/2A output Interface: Round, external diameter 4mm; Internal needle : 1.6mm |
|
|
Audio test |
||
|
Audio test |
1 x Audio signal input |
|
|
Coaxial PTZ control test |
||
|
|
|
|
|
Communication interface |
Video IN BNC interface |
|
|
Communication protocol |
CVI protocol (Dahua coax), AHD protocol (Pelco-c) and TVI protocol (Hikvision) |
|
|
485 PTZ control test |
||
|
Communication interface |
RS485 |
|
|
Communication protocol |
More than 30 protocols, including Pelco-D/P, Samsung, Panasonic, Lilin and Yaan |
|
|
Baud rate |
150, 300, 600, 1,200, 2,400, 4,800, 9,600 and 19,200bps |
|
|
LED lighting(flashlight) |
||
|
Head LED |
2 x 35lm LED, wide angel |
|
|
TDR cable test |
||
|
Cable test |
Testing the length of network cable (4 pairs). Resolution: 0.1 meter; Accuracy: 1 meter. The maximum length of the measured cable is 130-200 meters (depending on the wire rod). |
|
|
Power supply |
||
|
Charger |
12V/1.5A 5.5mm round-plug power supply |
|
|
Battery |
Equipped with two battery compartments One special lithium battery pack can be placed in each battery compartment, with a single capacity of 18.5Wh. The combined working time is about 10 hours (it also can work with a single battery). |
|
|
Charging |
12V/1.5A charging, Power: 18W,max. Charging time: 3~4 hours. |
|
|
Power saving |
Can set the automatic switching of overtime and display the icon of battery level in real-time. |
|
|
System parameters |
|
|
Display screen |
7.0” TFT 1920*RGB*1200 (resolution),16.7M(color), Backlight brightness adjustable |
|
Operation method |
Power button, Master control keyboard with 13 keys, Full-fit technology capacitive Multi- touch screen (input) |
|
Operation settings |
Chinese/English interface, user optional |
|
Automatic standby |
Disabled/5-60 minutes |
|
Keyboard tone |
Enabled/ Disabled |
|
Working environment and specifications |
|
|
Working temperature |
-10℃~+55℃ |
|
Working humidity |
30%~90% |
|
Outline dimension |
236.5x133.4x45.4mm |

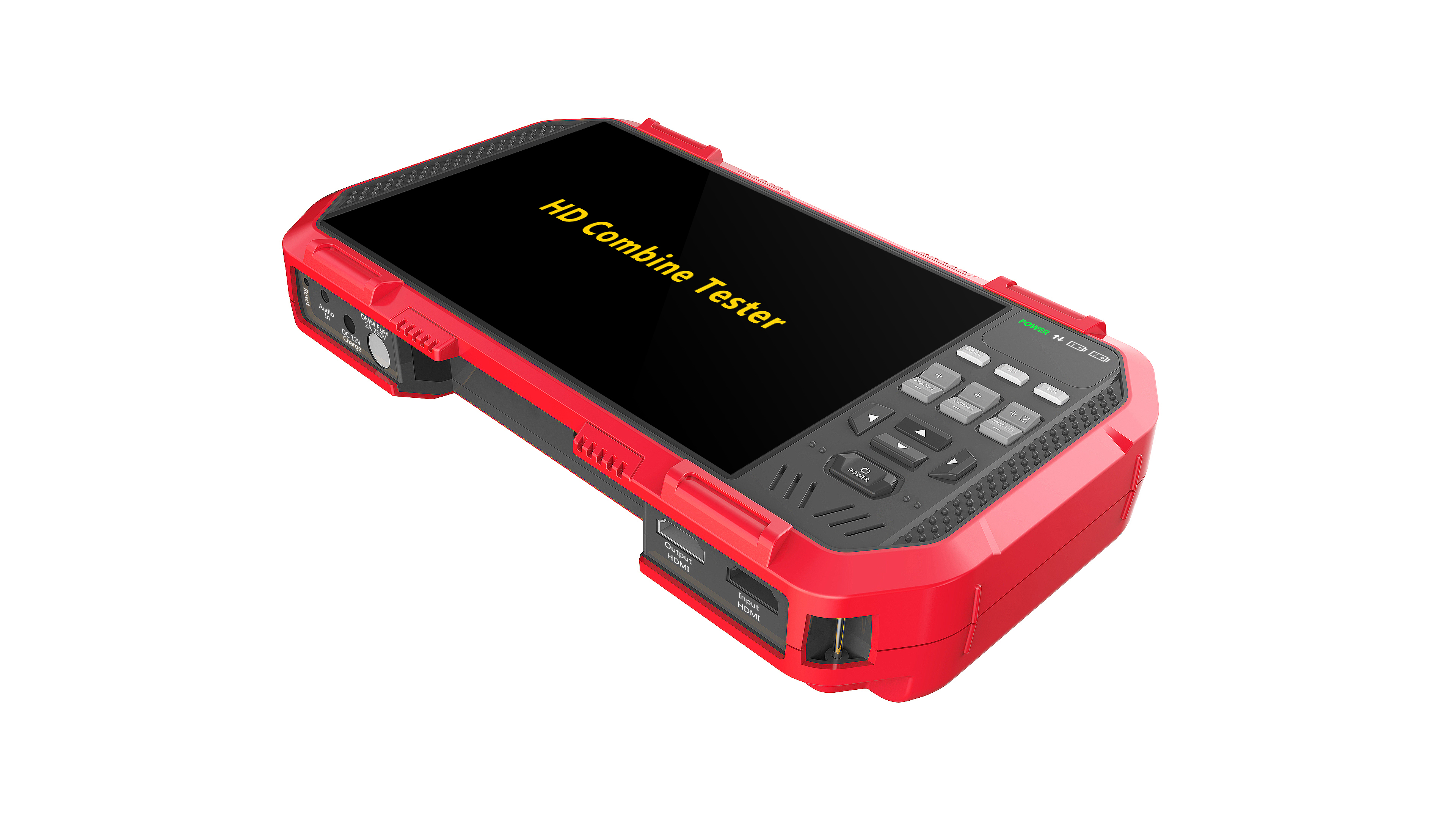

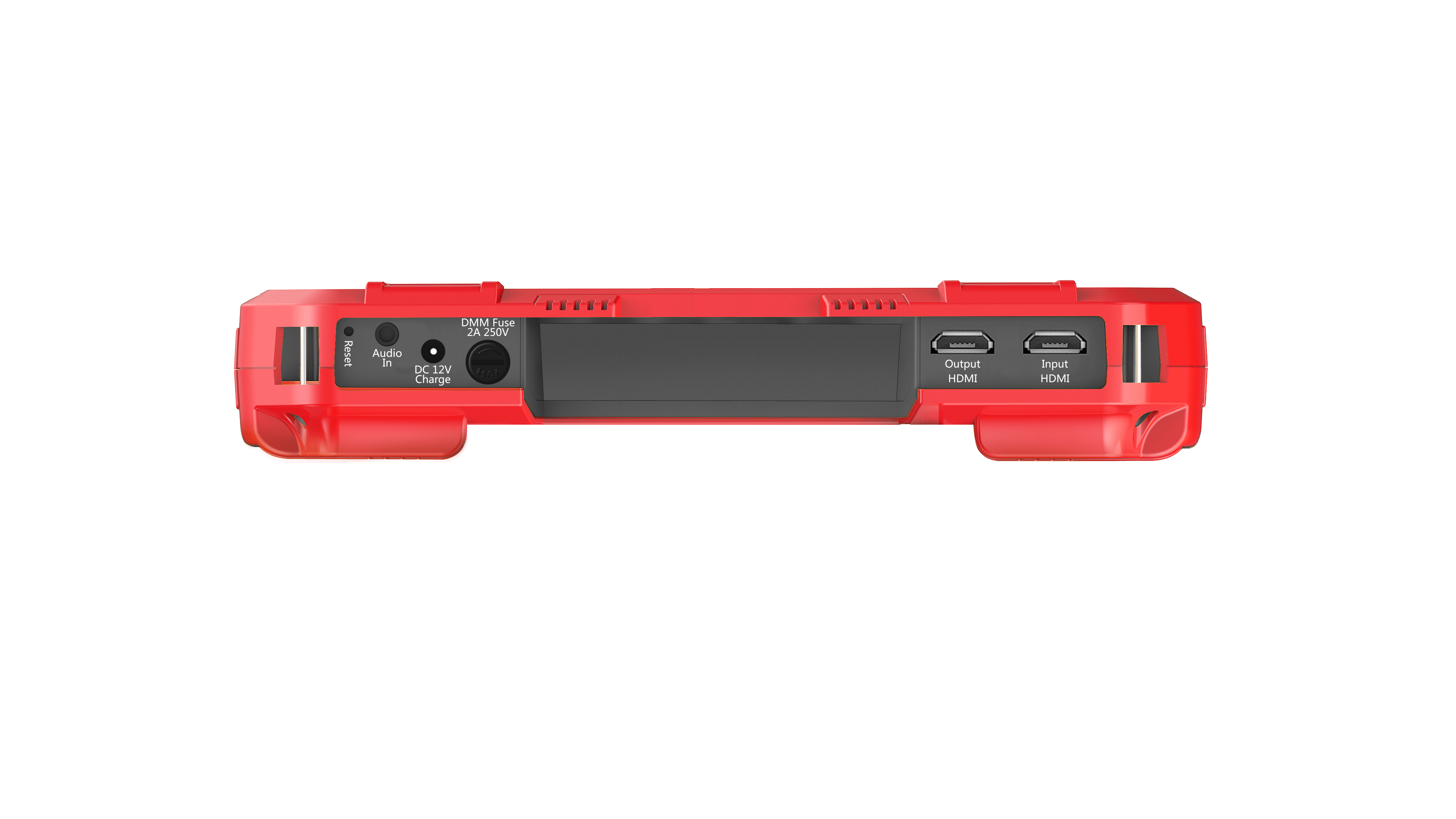

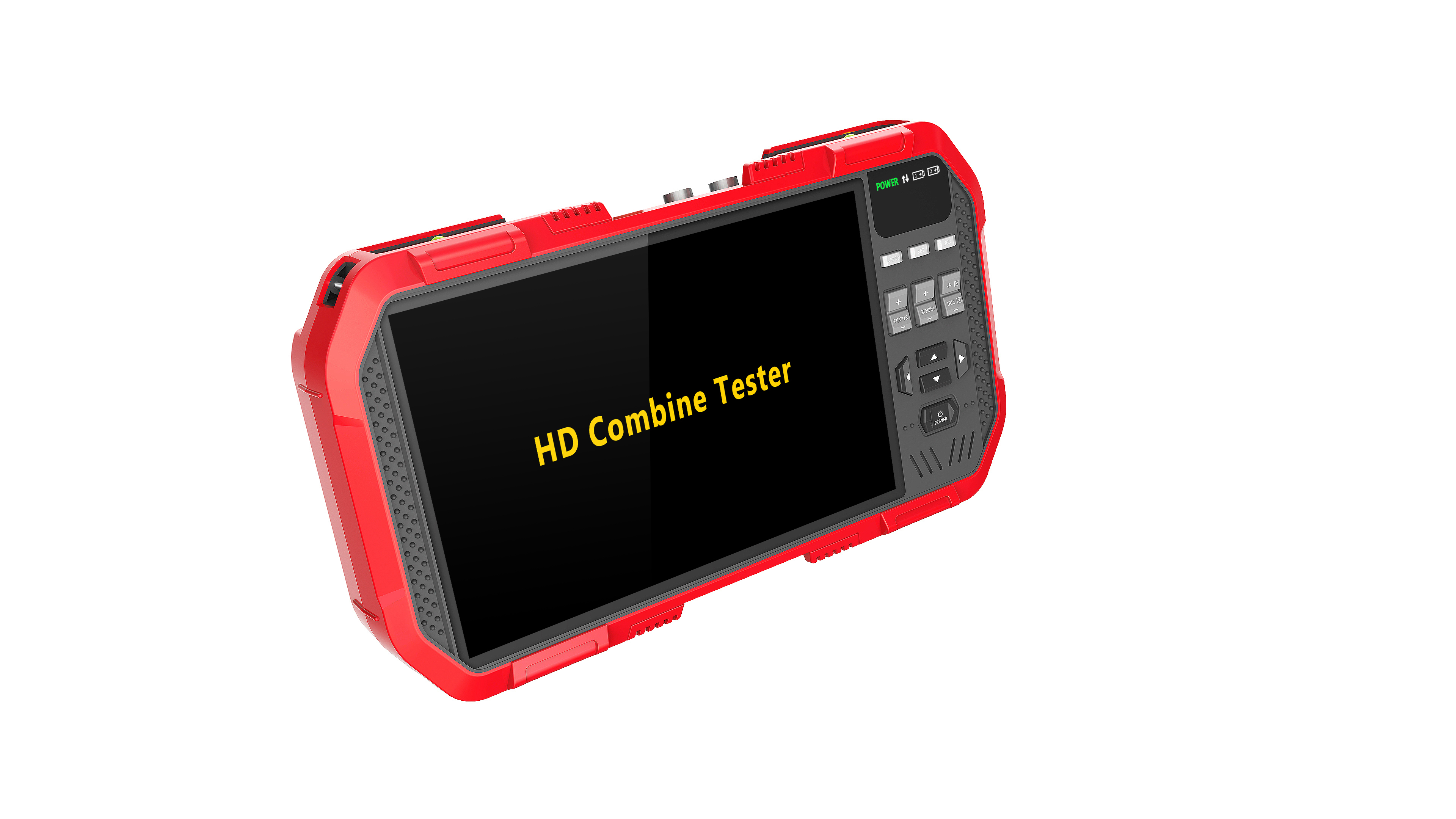

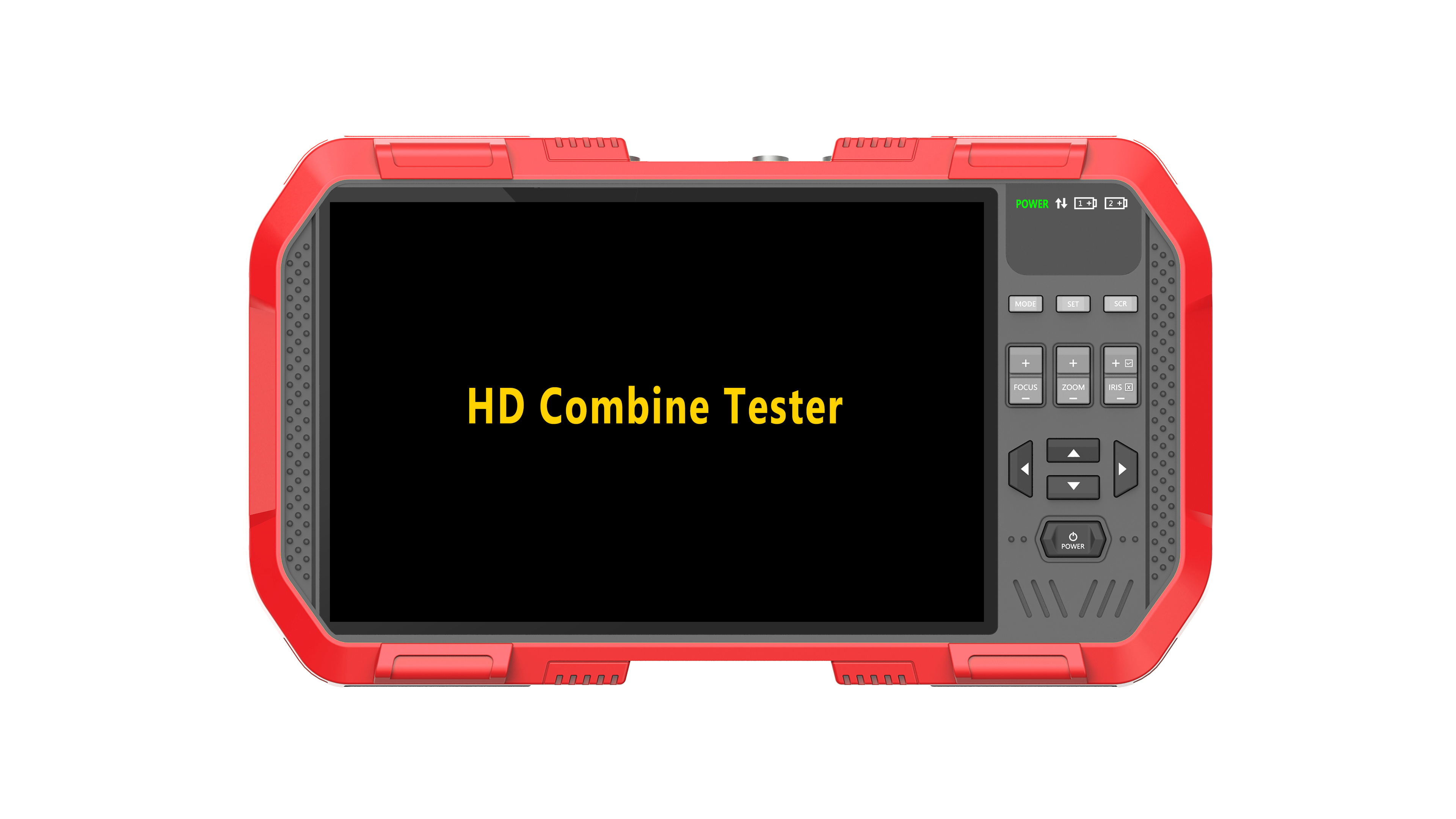

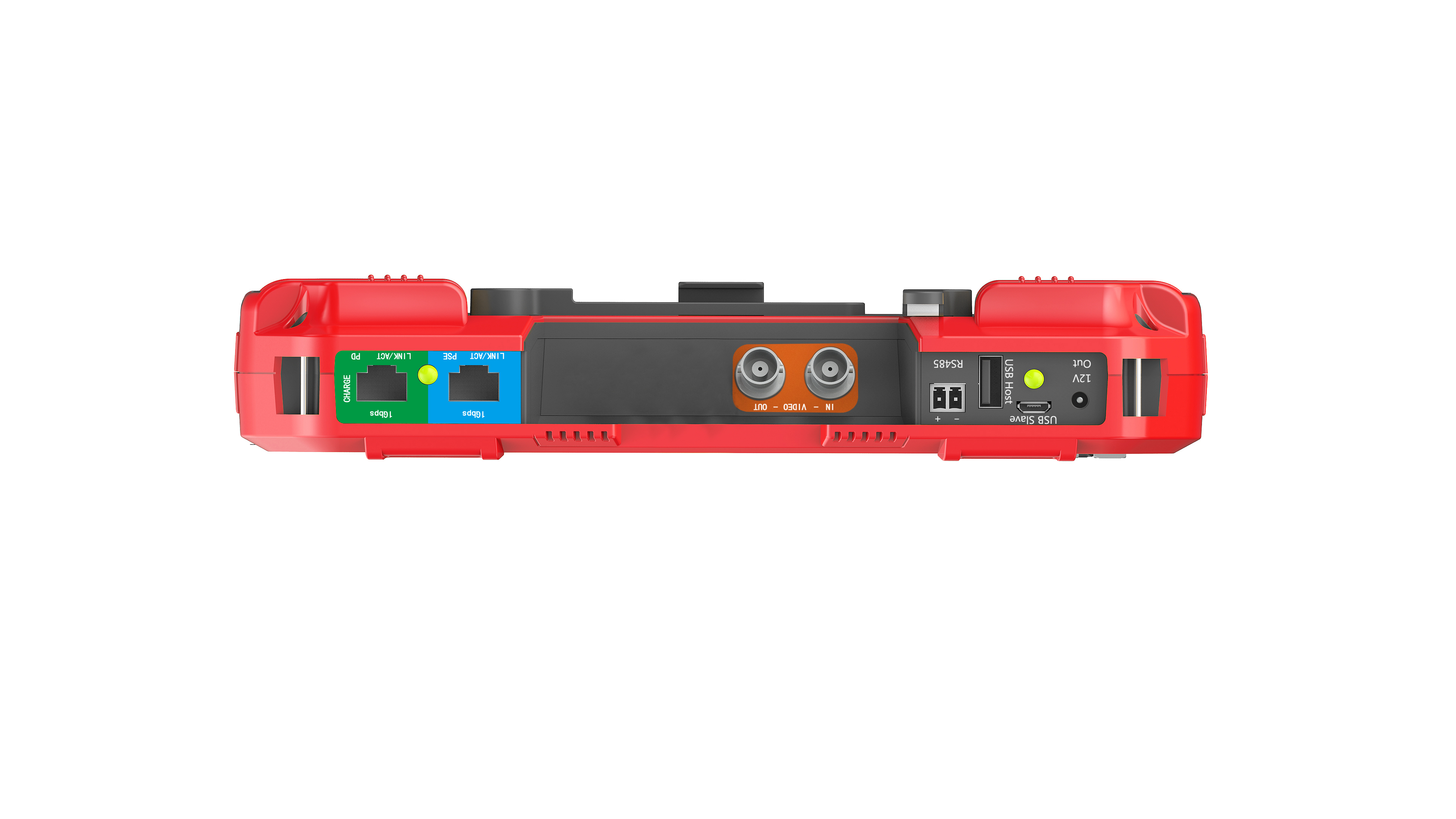

Product Pictures:
