IPC-5100 Plus security camera tester

This is IPC-5100 Plus portable 8K security surveillance camera tester, it is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of IP network camera and coaxial HD surveillance camera,Tests 12MP IP, 8MP AHD/CVI/TVI & CVBS (no SDI). HDMI/VGA input, POE, cable test, WiFi, RS485. Android, auto-updates.

IPC-5100 Plus security camera tester

IPC-5100 Plus series︱8K IP Camera Tester

Product Description:

This is IPC-5100 Plus portable 4K security surveillance camera tester, it is an essential tool for field technicians in the field of security cameras. Used for the installation and maintenance of IP network camera and coaxial HD surveillance camera.

IPC-5100 Plus support up to 12MP IP camera testing, support up to 8MP AHD CVI TVI camera and CVBS camera testing, but SDI camera can't be supported. HDMI and VGA input function can use the tester as a display for NVR and DVR testing. Professional test app, POE, cable test, WiFi, power output, RS485 are all available. Using Android system, you can automatically update APP after connecting to the Internet. You can continue to view the details to learn more. If you need any help, you can contact us at [email protected].

SUPPORT CAMERA TYPE"

IP camera test:

Max 12MP 8K IP Camera test. IP Discovery/Quick OVIF/RTSP play/Client APK. Rapid Video:Auto view the video, create testing report. Support PoE, Hik and DH camera test tool, ovif test tool etc.

Coaxial HD camera test:

Max 8MP TVI/AHD/CVI/camera test, 3840 x 2160P, support UTC control and call OSD menu. SDI camera can't be supported

CVBS camera test:

1* BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. such as PELCO-D/P etc. Does not support color bar test.

Features:

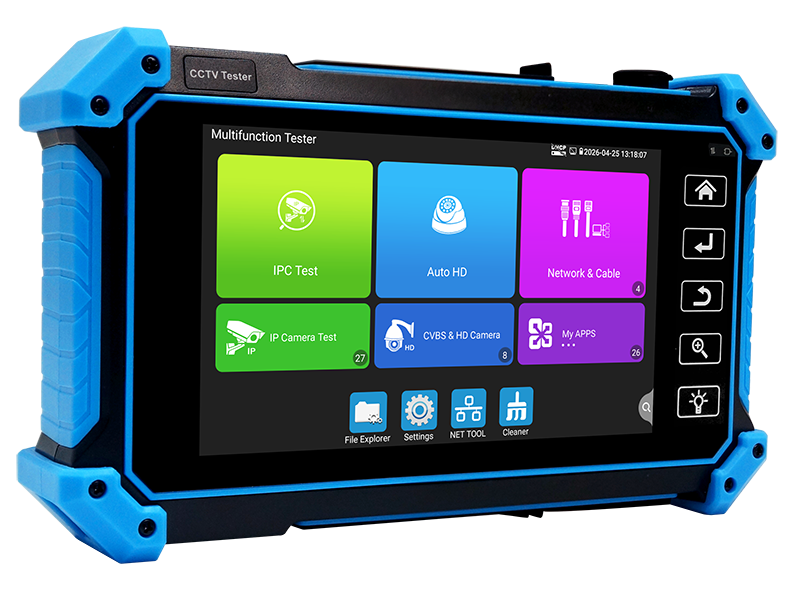

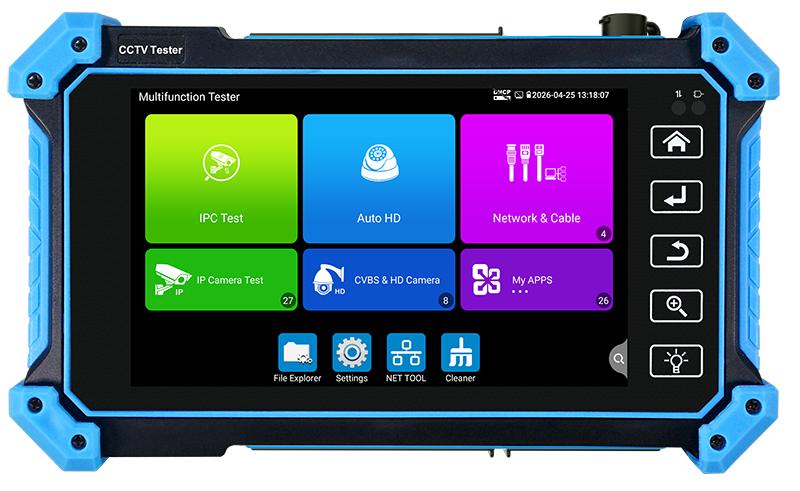

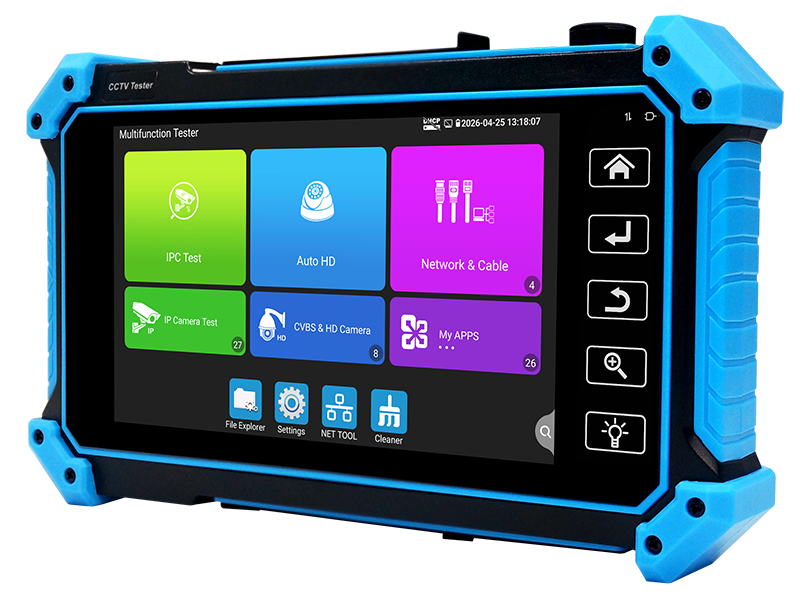

● 5.4 inch IPS touch screen, 1920x1152 resolution

● 8MP CVI/ TVI/ AHD camera test

● Support TVI intercom,TVI/CVI coaxial audio test New

● 8MP EX-SDI, HD-SDI, 3G-SDI camera test* Optional

● H.265/H.264, 8K video display via mainstream New

● Adding port protecting cover New

● VGA input, support 2048 x 1152P 60FPS

● HDMI Input, support 4K 30FPS

● DC12V 3A, 48V PoE power output

● Rapid ONVIF, Create the test report and modify IP address, etc

● Auto HD, auto recognize HD coax camera type and resolution

● RJ45 TDR cable test, cable quality test

● UTP cable test, detect the near-end, mid-end and far-end fault point

of the RJ45 cable plug

● Detection of switch ports supporting LLDP or CDP protocol New

Application:

The 5.4 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1152 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions.
CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.
CCTV system installation and maintenance
Network cabling project installation and maintenance
Dome camera, TVI CVI AHD SDI IP 8K H.265 camera testing
Video transmission channel testing
PTZ controller

Parameters:

Brand	Colorfulelectronics
Model	IPC-5100 Plus
Display	5 inch IPS touch screen, 1920x1080 resolution
12MP 4K IP camera test	IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK
	Rapid Video: Auto view the video, create testing report
	For HIKVISION test tool: support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, open wide dynamic mode. Factory restore, etc.
	For DAHUA test tool: support batch activate DAHUA cameras and modify IP address,username and password. Self-defined modify channel name.
	For Axis test tool amd others brand camera test: After the tester connects to the network, install the dedicated test tool APP of the corresponding brand through online update. Brands that do not have a dedicated test APP can be tested through the test pro tool.
HD Coaxial test	8MP TVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu
	8MP CVI camera test: 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu
	8MP AHD camera test: 3840 x 2160P 15FPS, UTC control / call OSD menu
	SDI camera can't be supported
	Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu
CVBS camera test	1 channel BNC input, NTSC/PAL (Auto adapt)
CVBS camera test	PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
HDMI	HDMI input: 1 ch HDMI input, support 4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/ 1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc
HDMI	HDMI output: N/A
VGA	1 ch VGA input, support 1920 x 1200P 60FPS. The resolution as follow: 1920 x 1200P 60FPS/ 1920×1080P 60FPS / 1792×1344P 60FPS / 1680x 1050P 60FPS / (1600x1200P/900P 60FPS) / 1440x900P 60FPS / 1360x768P 60FPS / (1280x1024/960/800/768/720P 60FPS) / 1152x870P 60FPS / 1024x768P 60FPS / 800x600P 60FPS / 600x480P 60FPS.
Zoom Image	4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back
Cable test	Digital Cable tracer: N/A
	UTP cable test: Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head.

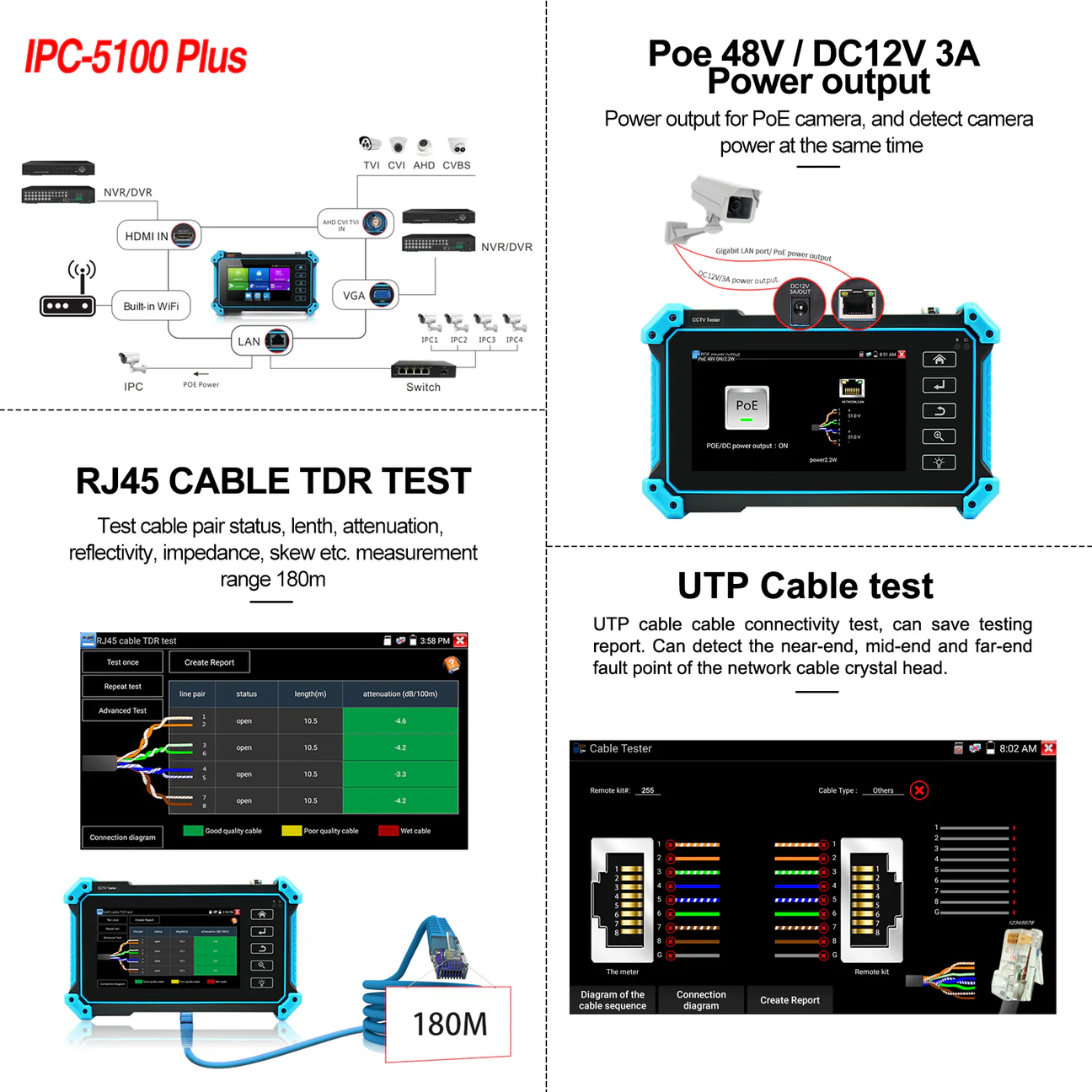

	RJ45 TDR cable test: Test cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M.
Tester Play	screen projection: Tester, mobile phone and PC display at the same time (only for android version mobile phone)
Network test	Trace route, Link monitor, DHCP server, port flashing, Ping test
Wi-Fi	Built in WIFI, speeds 150M, Only support 2.4GHz. display wireless camera image, create WIFI hotspot.
Audio test	1 channel audio signal input, test whether sound normal.
Data monitor	Captures and analyzes the command data from controlling device, also can send hexadecimal.
Power	Input: DC 12V/1A input
Power	DC output: DC12V/3A power output, supply temporarily power for the camera POE output: Standard IEEE802.3af/at PoE power output, DC48V, max 25.5W

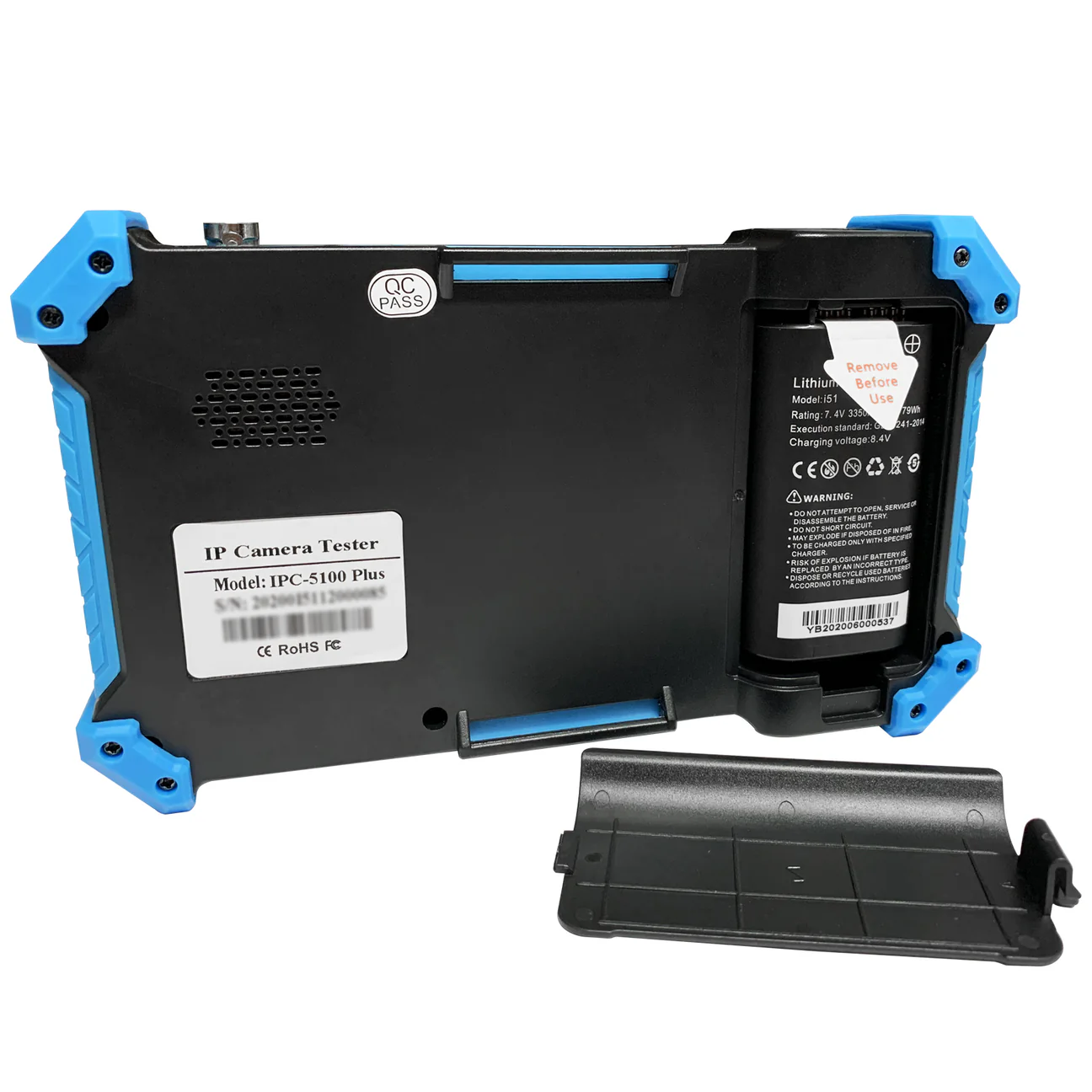

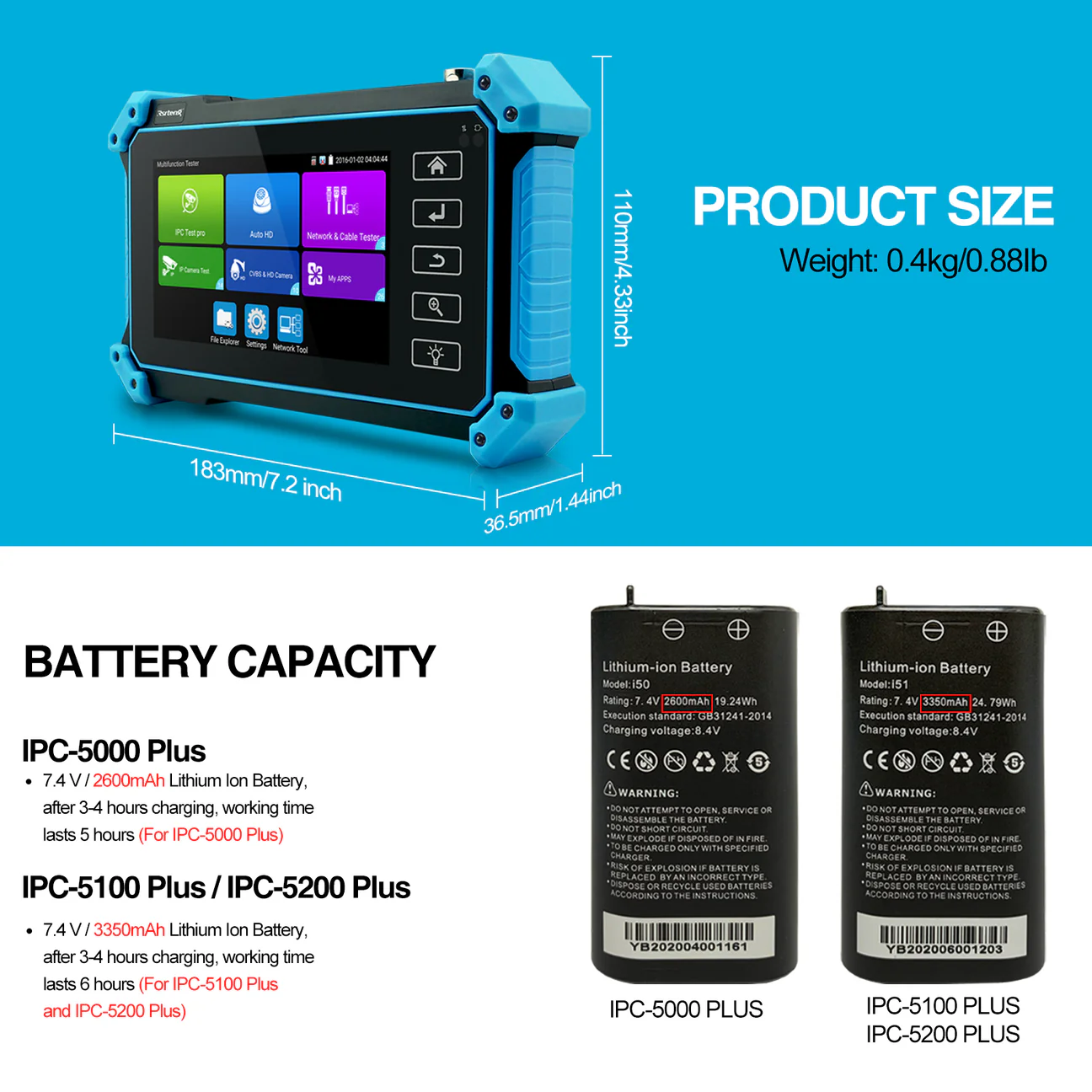

Battery	Built-in 7.4V Lithium polymer battery, 3350mAh, 24.79W/h
Rechargeable	After charging 3-4 hours, normal working time 5-8 hours
OS	Android, Free to add APP (requires version support)
CPU	4core, 1.2GHz
RAM(DDR)	1GB
Flash(eMMC)	8GB
TF card slot	Suport up to 32GB, item not include TF card
Menu language	English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc
Auto off	1 to 30 (mins)
Work Temperature	-10℃ to +50℃ (+14℉ to +122℉)
Work Humidity	30% to 90%

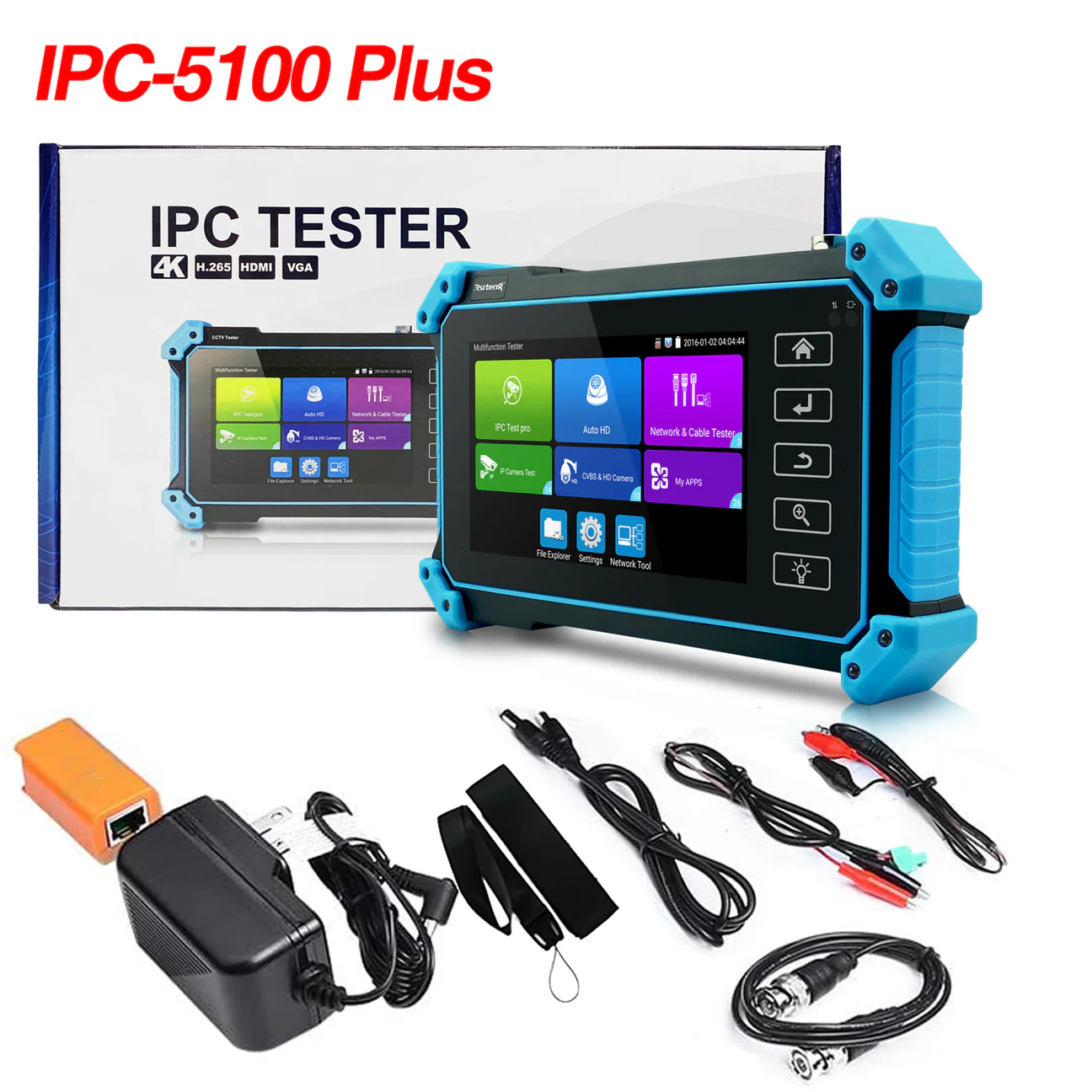

Package includes	1xTester; 1xPower adapter; 1xCable test box; 1xPower output cable; 1xBNC video cable; 1xRS485 cable; 1xAudio Test cable; 1xTool box; 1xShoulder Strap; 1xWristband
Dimension	Package Dimension: 260x143x100mm(10.24x5.63x3.94inch) Tester:183x110x36.5mm(7.2x4.33x1.44inch)
Weight	Package weight:1.05kg(2.31lbs) Tester net weight: 0.4kg(0.88lb)

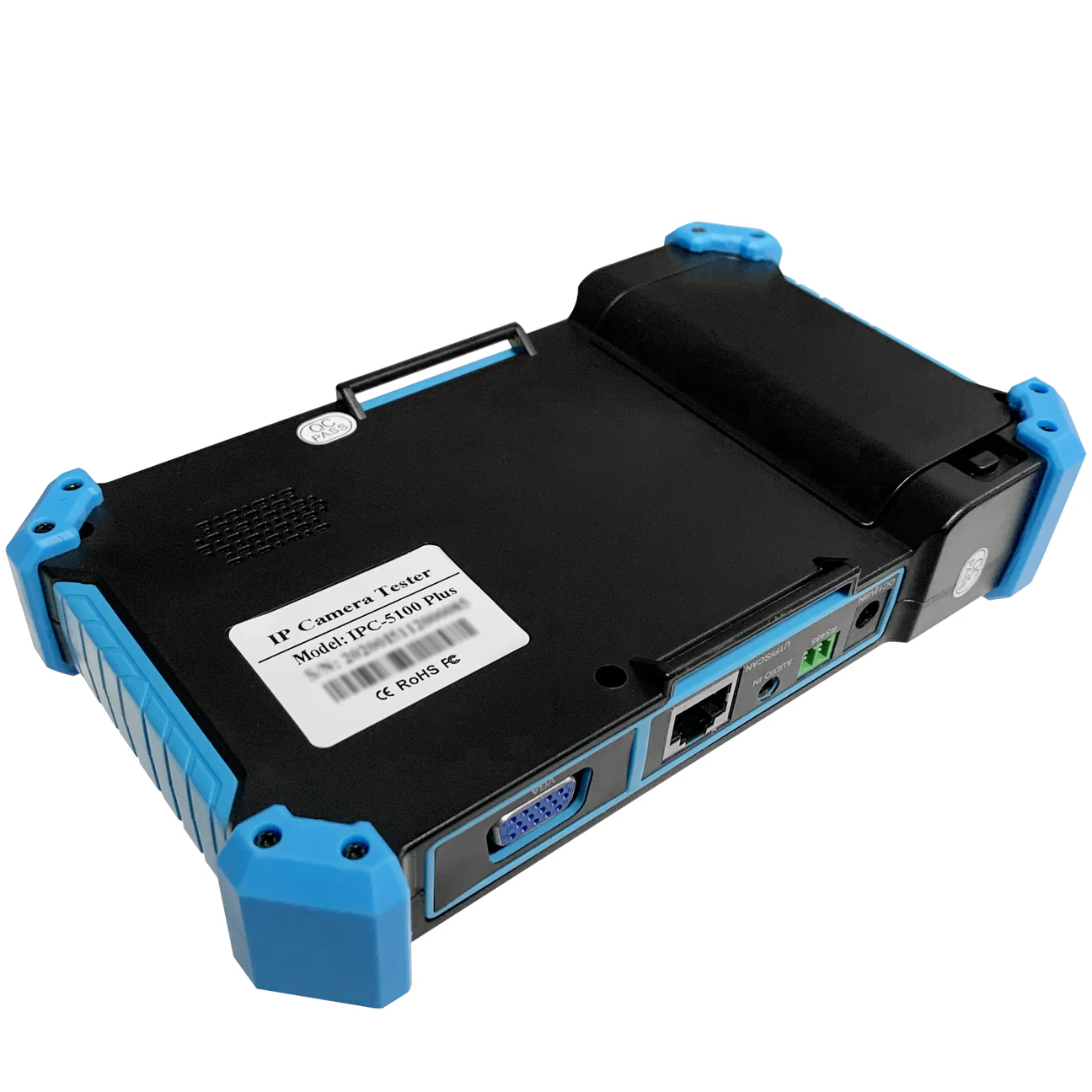

Products Pictures:
