Brand :Colorful Electronics
Origin: China
Sample order : Support
Screen Size:5 Inch 5.0"TFT - LCD,800(RGB)* 480 resolution
Power Plug:EU, AU, US, UK Plug optional
Battery: 5200mah lithium-ion battery x2pcs
POE power and 12V Power Output
The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.

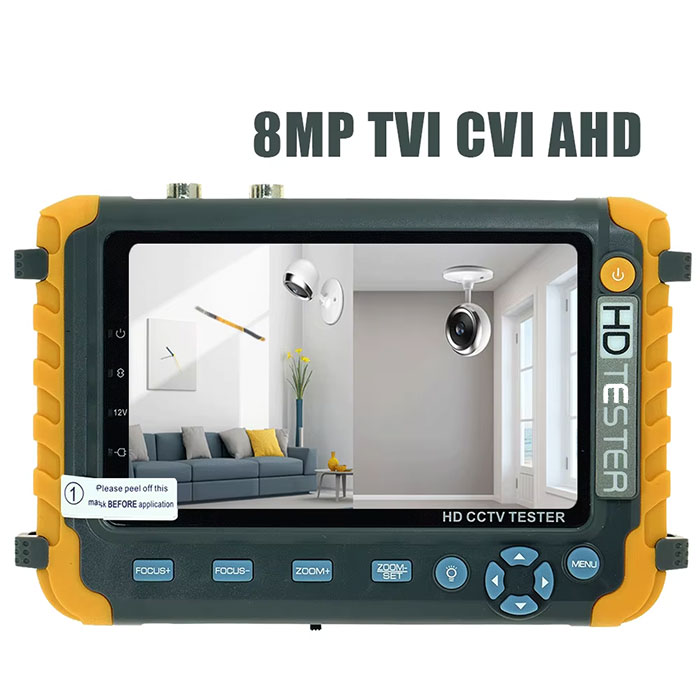

IV8M 5Inch 8MP HD ADH CVI TVI CVBS 5 Ins 1 Coaxial HD CCTV Camera Tester
Product Description:
Please note:
This CCTV tester not supported Digital Multimeter and can not test IP camera .
The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
Functions:

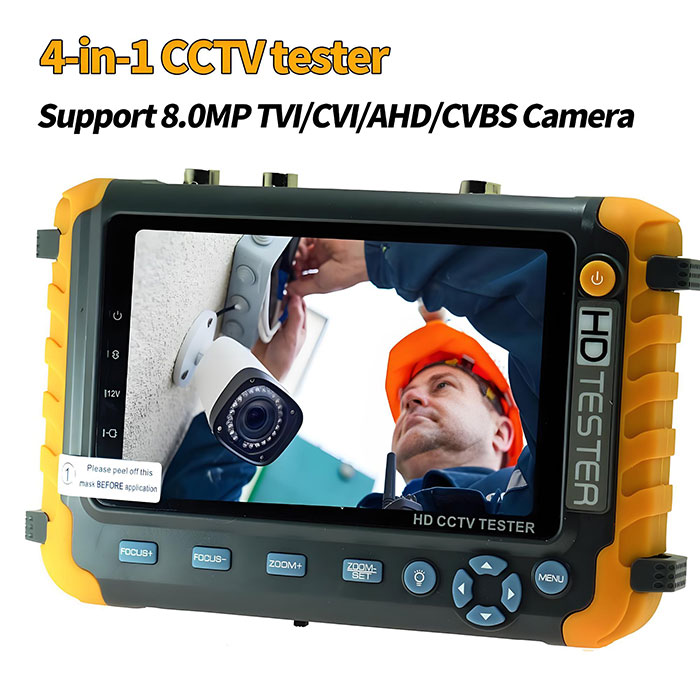

1. Support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera Test,withVGA/HDMI input.4-In-1 CCTV Tester Monitor.
5.0 inches 800 x480 High-resolution view angle display, more intuitive and easy to display the camera image quality, support PAL/NTSC standard video signal.
2 . The new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having TVI,CVI, AHD. (NOT Support IP Camera). It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.

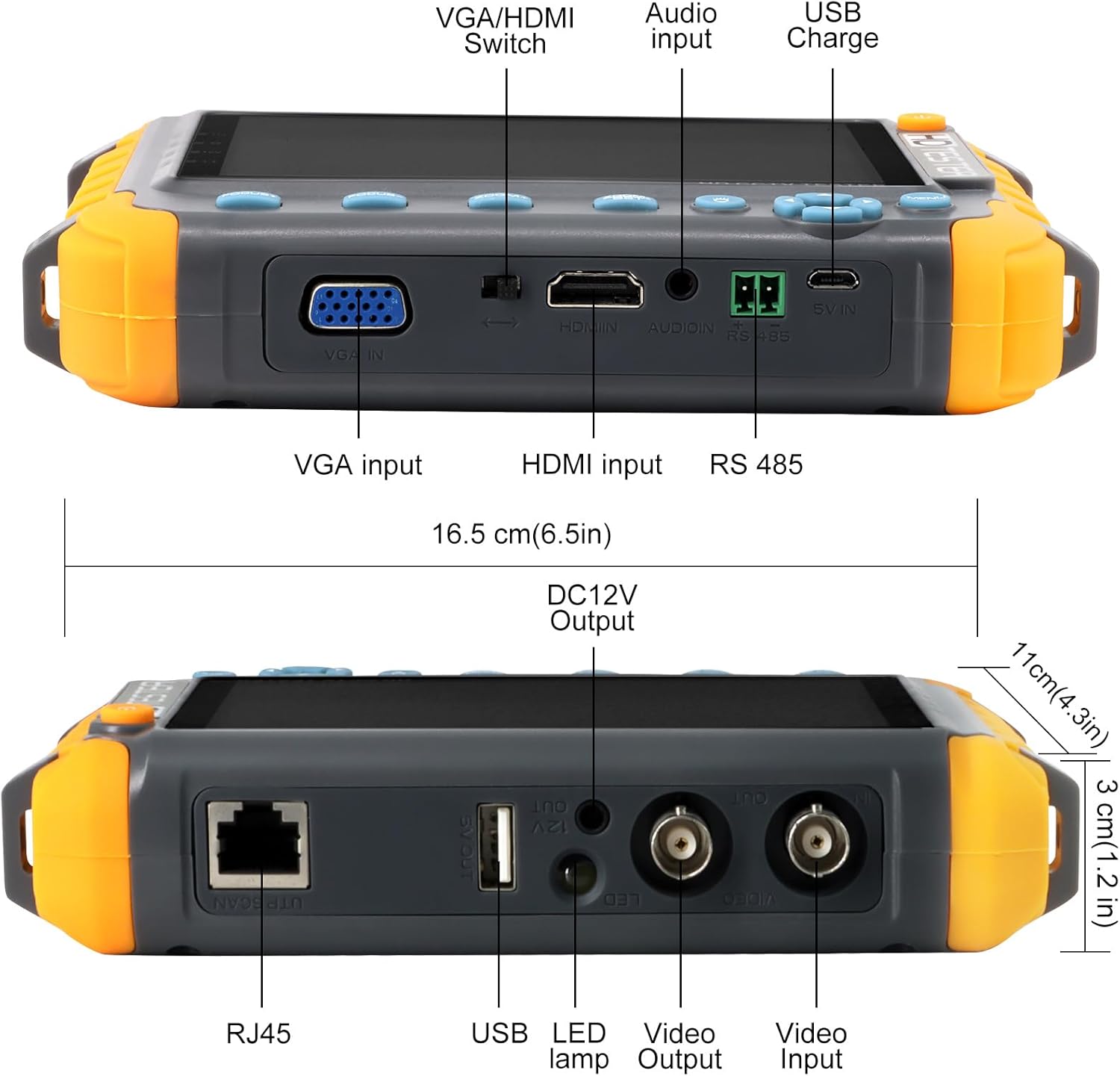

3.VGA/HDMI Input,it support VGA/HDMI 1:1 compliant digital input,once connect VGA/HDMI video,please switch selector to select VGA/HDMI Mode,The maximum resolution is 1920*1440. Video monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.

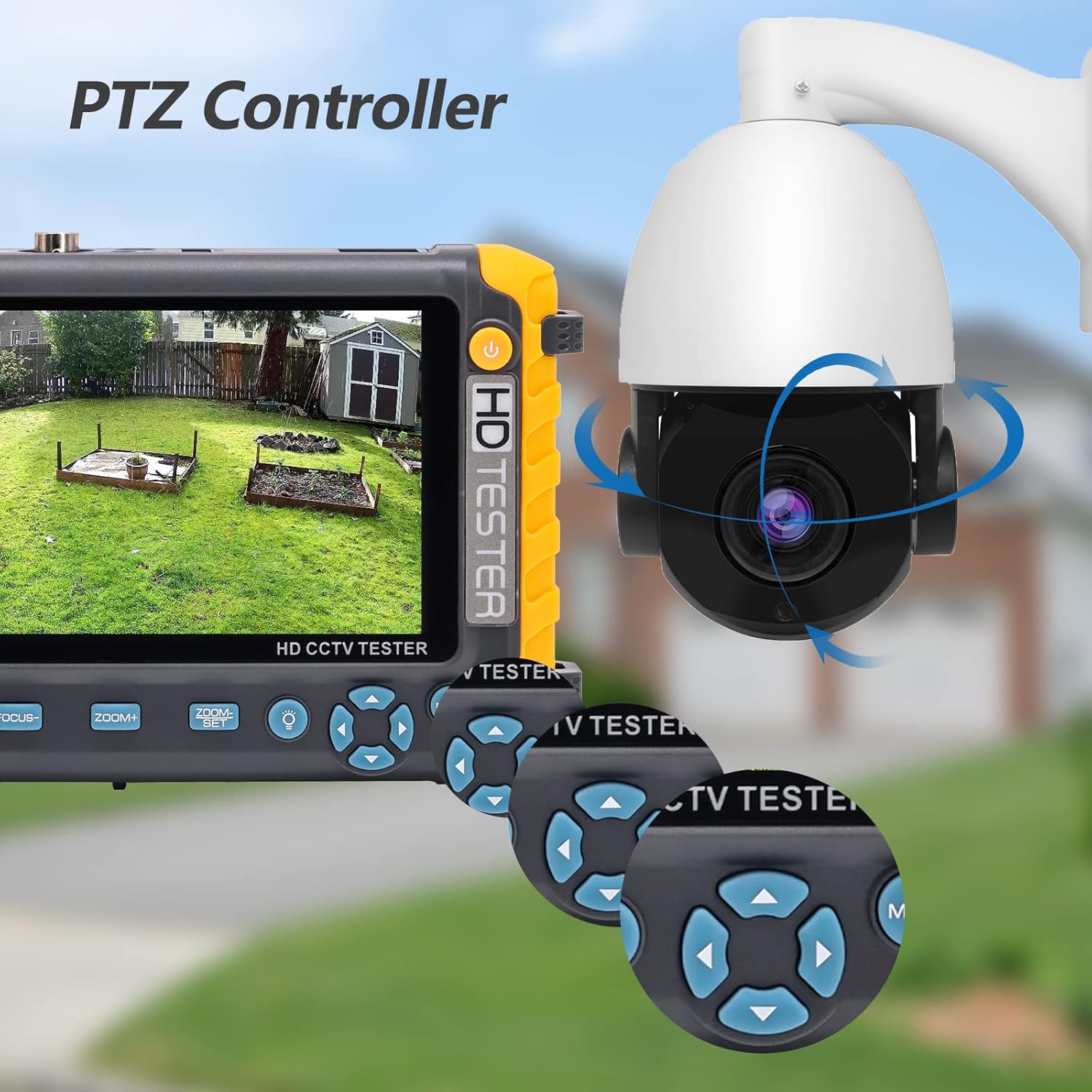

4.PTZ controller: Video monitor tester built-in Pelco-D / P PTZ control protocol,etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size.

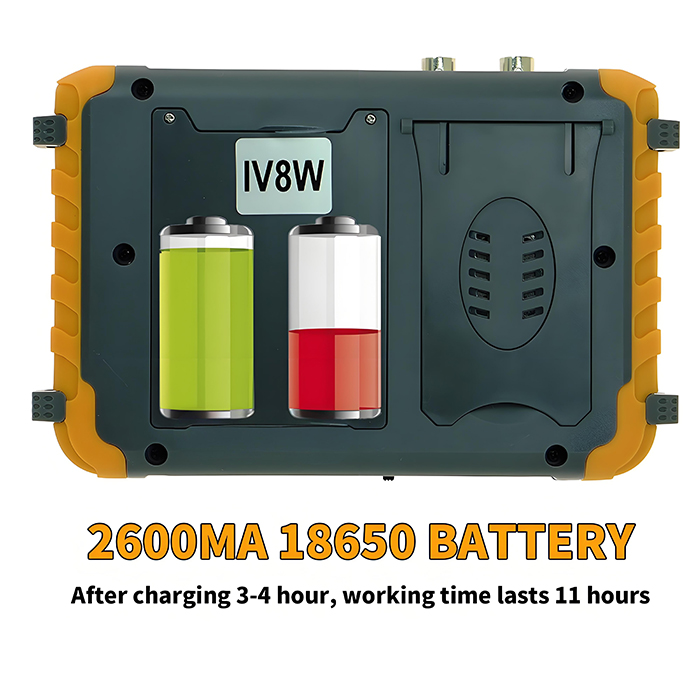

5. DC12V 1A output power: Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available. Rechargeable: Built-in 18650 2600mA battery X 2,after charging 3-4 hour, working time lasts 11 hours.
6. AHD Signal test: 8MP5MP 4MP 3MP 1080P 720P camera test;
7. TVI Signal test: 8MP 5MP 4MP 3MP 1080P 720P camera test
8. CVI Signal test: 8MP 4MP 3MP 1080P 720P camera test
9.Video signal testing
10.Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.
11.PTZ controller
12.Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
Image generator
13.Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

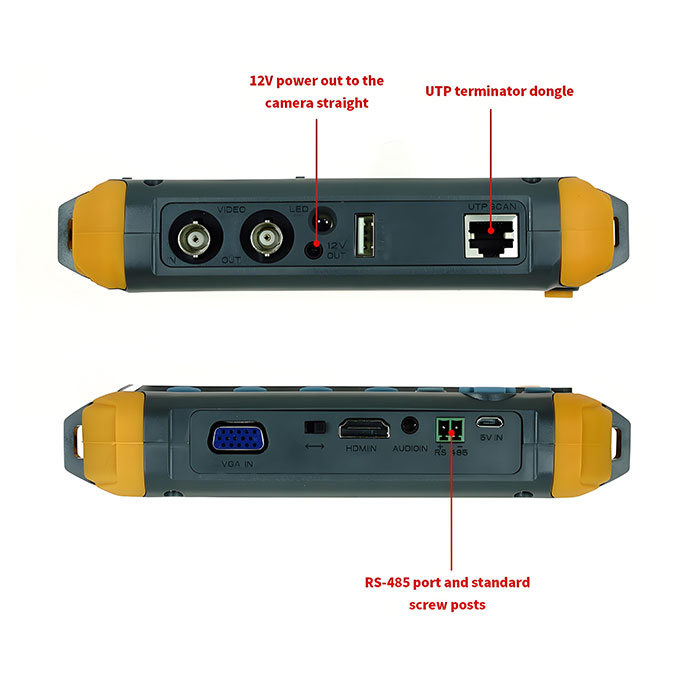

14.DC12V 1A output power
15.Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available
Audio testing
16.Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
Enhanced network cable testing
17. By UTP CABLE TEST port on the meter, you can test the connection of network cable.
18.VGA/HDMI input
19.Support VGA/HDMI 1.0 video input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode. The maximum resolution is Max 8MP
TVI camera test
20.HD TVI video surveillance testing, support Max 8MP
When TVI signal input, the tester will display HD TVI camera image.
21.AHD camera test
HD video surveillance testing, support AHD 2.0 version, Max 8MPWhen AHD signal input, the tester will display the AHD camera image.
22.CVI camera test
HD CVI video surveillance testing, support Max 8MP . When TVI signal input, the tester will display HD TVI camera image.LED lamp
23.It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
The battery graphic display
24.The tester has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours.

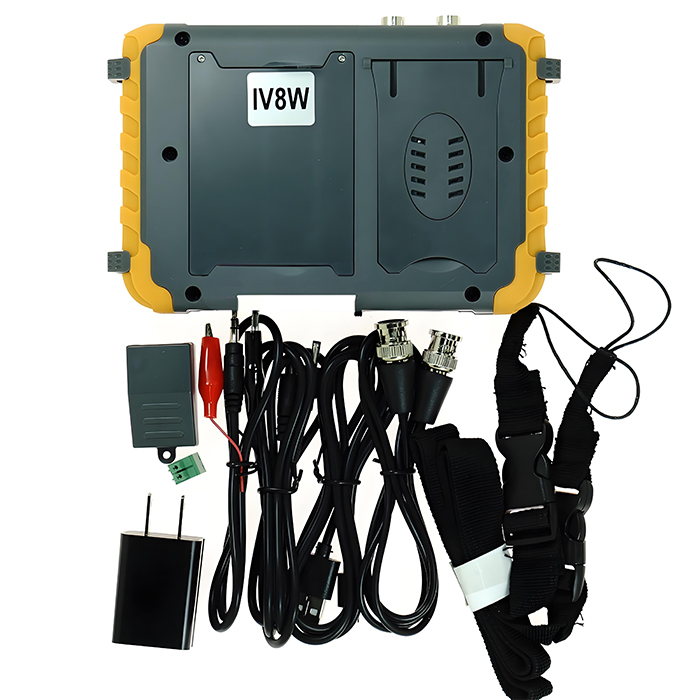

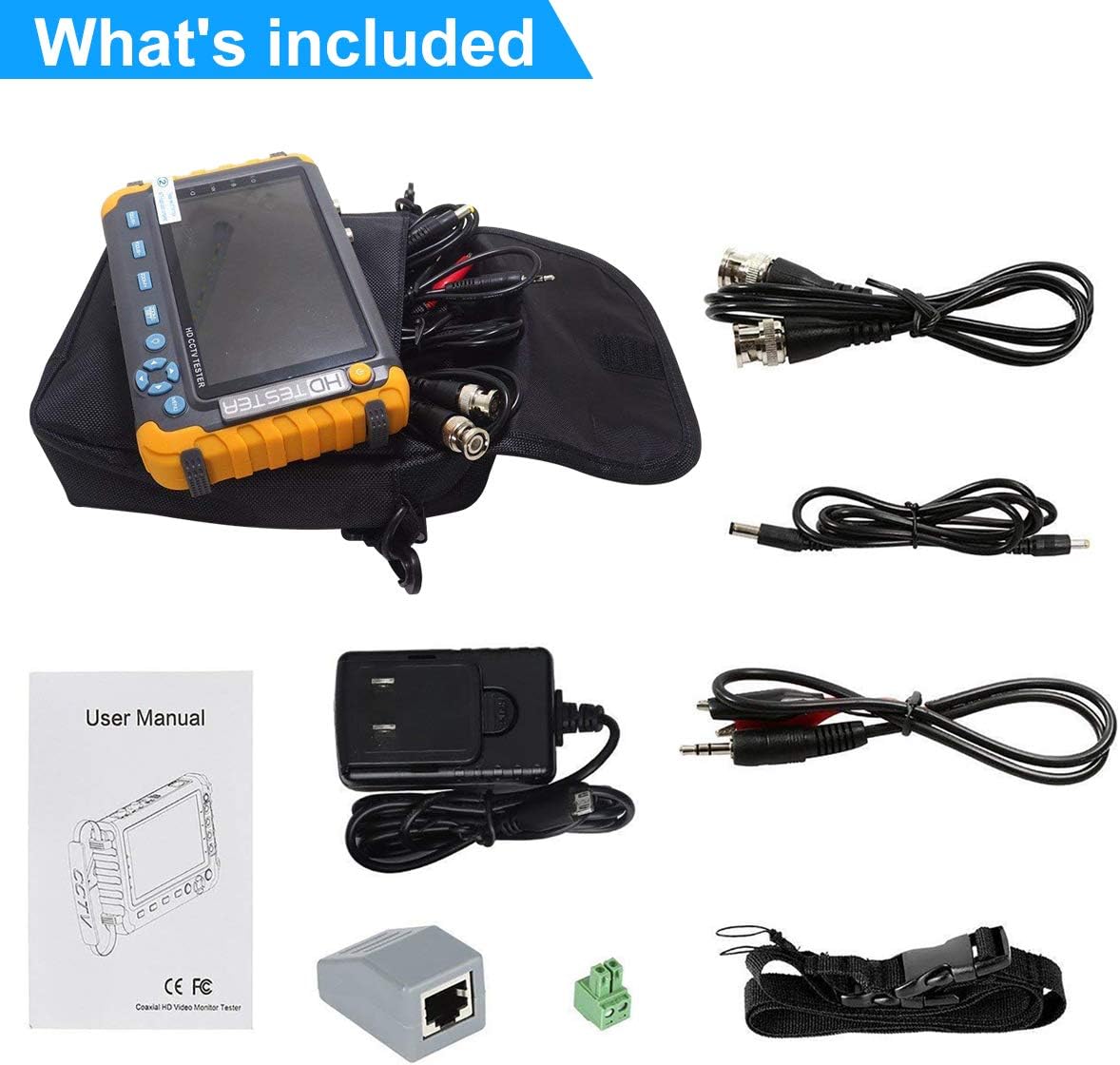

Package:
1*HD coaxial CCTV tester monitor .1*Adapter DC5V 1A(with USB cable)
1*International Standard 18650 2600ma battery
1*BNC cable
1*RS485 connector
1*Power output conversion cable
1*Audio cable
1*Lanyard
1*Tool bag
1*Instruction Manual
Pictures:
